Example PRAID CP400i

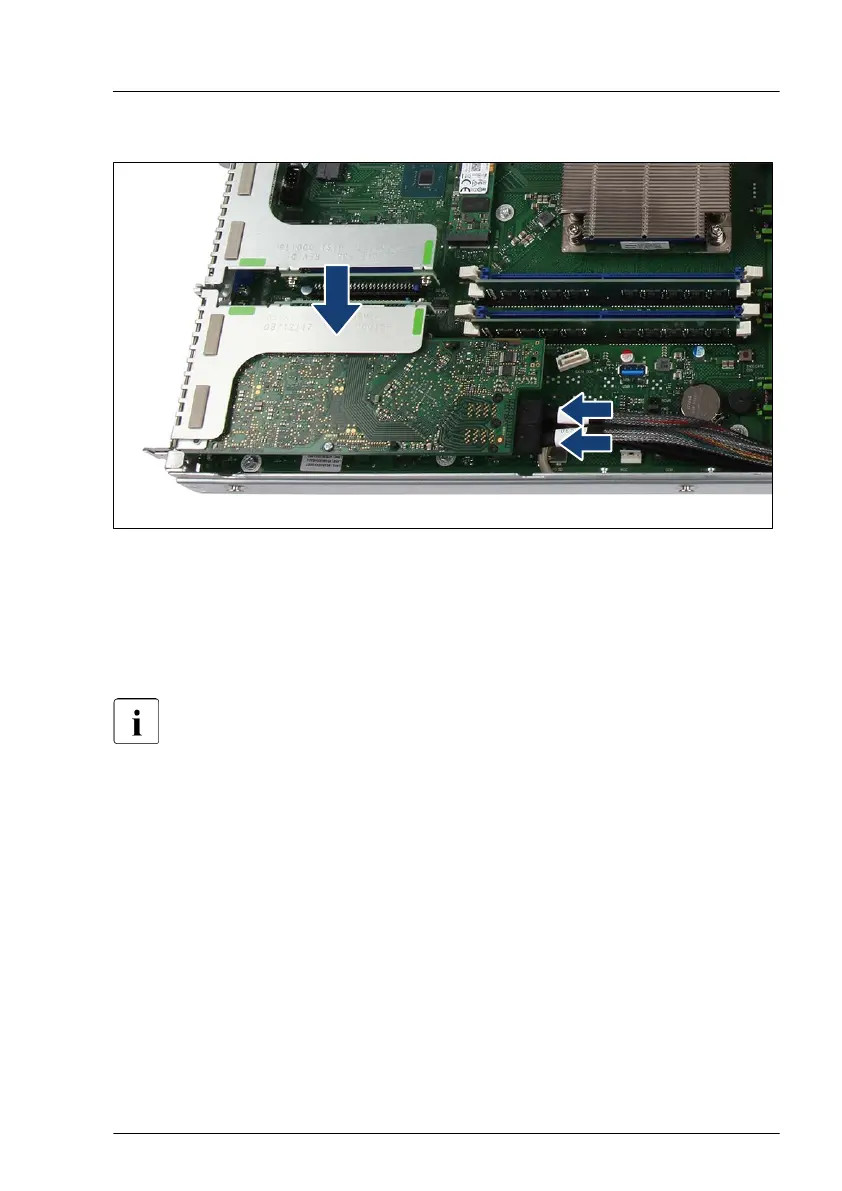

Figure 115: PRAID CP400i in riser module 1
▶
Install the PRAID CP400i in the corresponding riser module.
▶
Connect the corresponding SAS/SA
T
A cables to the PRAID CP400i.
▶
Connect the SAS/SATA cables to the corresponding HDD backplane.
For the cable plans, see "Appendix B" on page
365
.
Expansion cards and backup units
RX1330 M4 Upgrade and Maintenance Manual 199
