Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

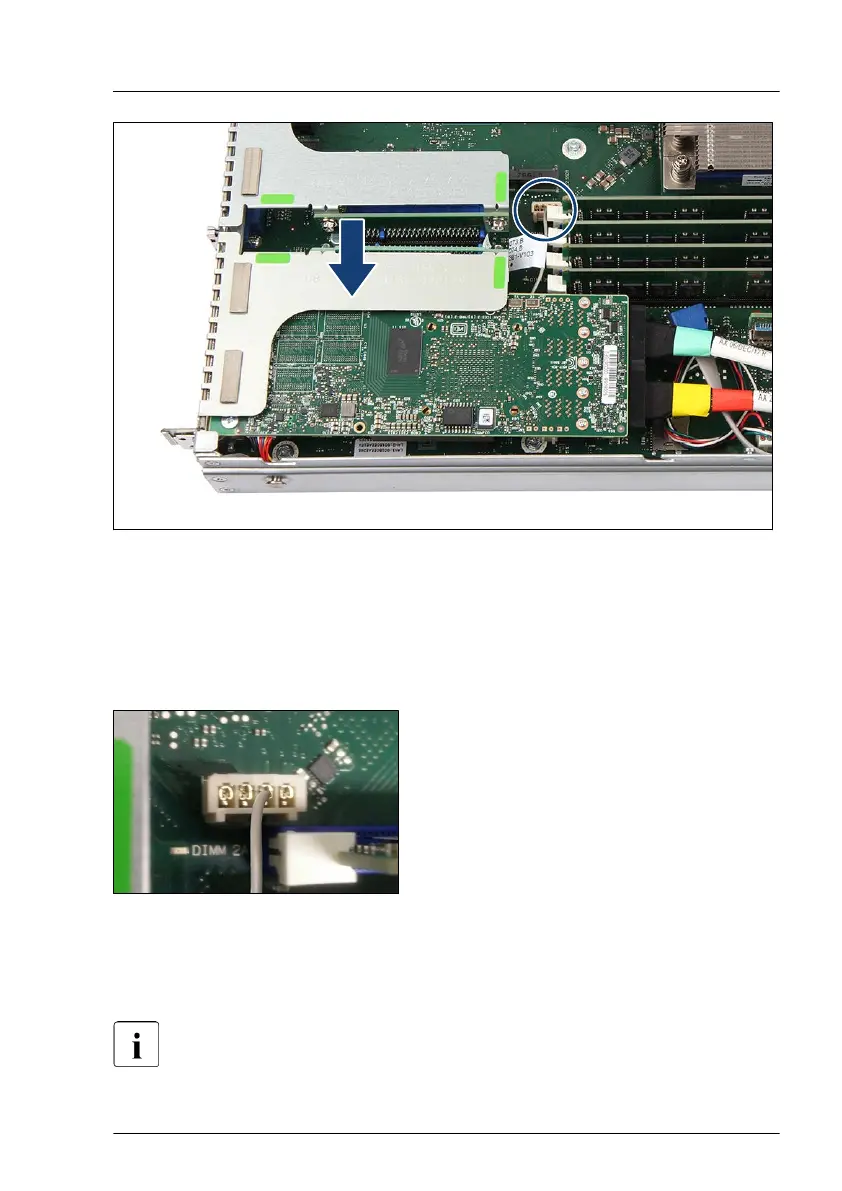

Figure 117: Example - PRAID EP5x0i in riser module 1
▶
Connect the corresponding SAS/SAT
A cables or Oculink cables to the
PRAID EP5x0i.
▶
Connect the HDD LED cable to connector "HDD LED" on the system board
(see circle).
▶
If applicable, connect the FBU cable to the FBU.
▶
Connect the SAS/SA
T
A cables or Oculink cables the corresponding HDD
backplane.
For the cable plan, see "Appendix B" on page 365
.
Expansion cards and backup units
RX1330 M4 Upgrade and Maintenance Manual 201

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
