Example RAID controller

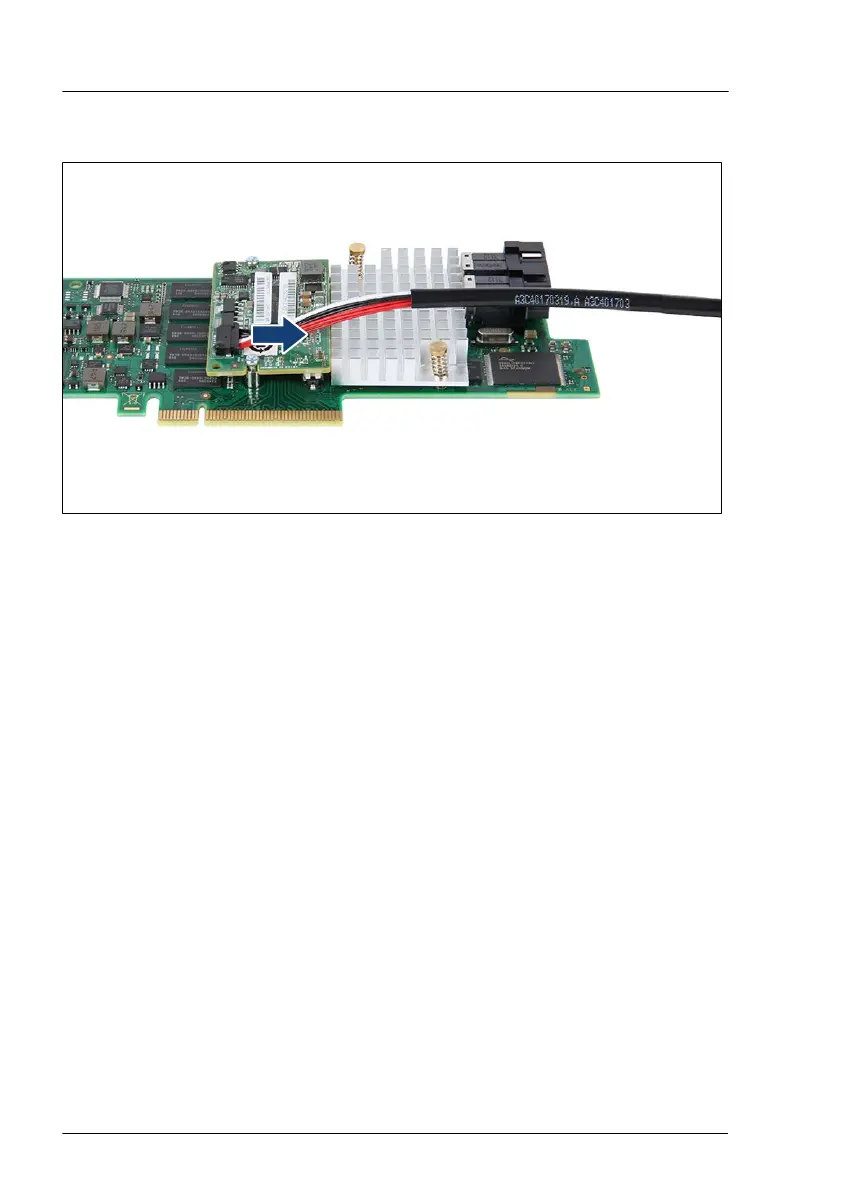

Figure 123: Disconnecting the FBU adapter cable from the TFM

▶

Disconnect the FBU adapter cable from the TFM.

Expansion cards and backup units

210 Upgrade and Maintenance Manual RX1330 M4
