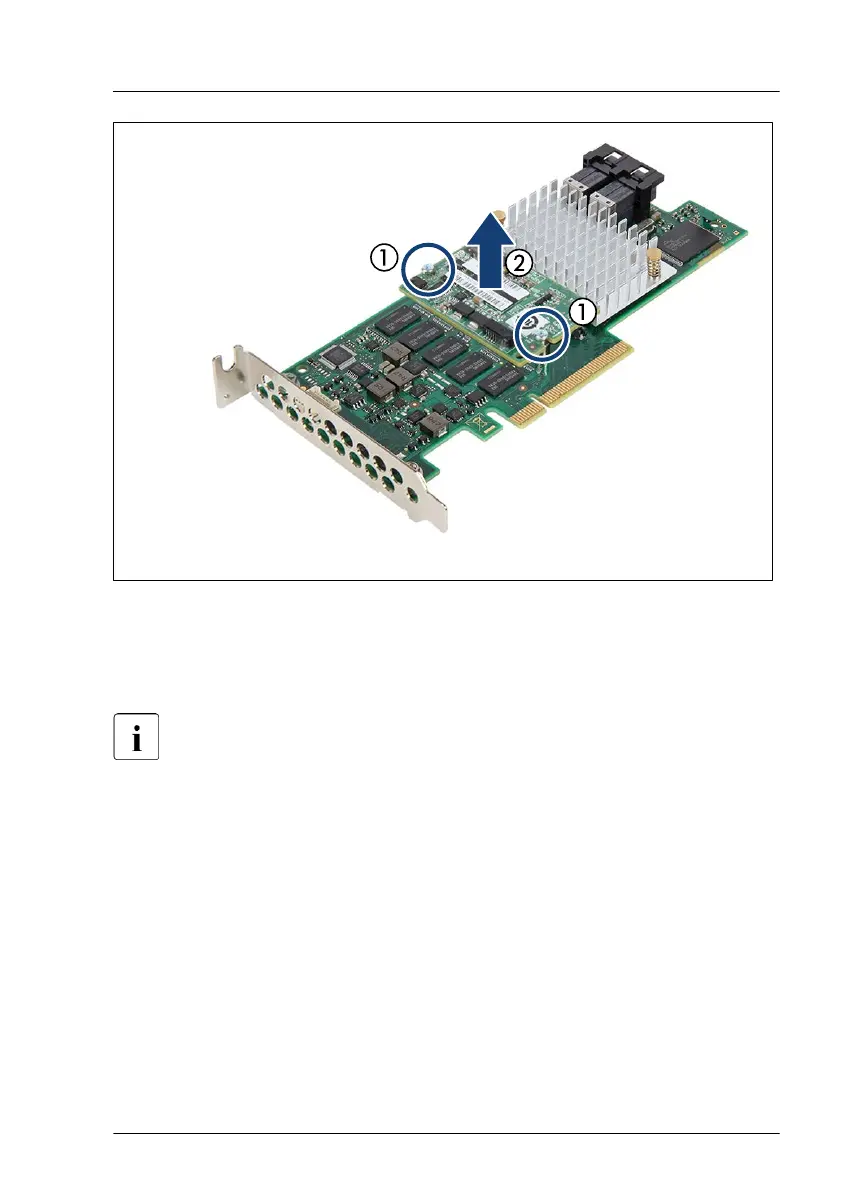

Figure 124: Removing the TFM
▶
Remove the two screws (1).
▶
Remove the TFM (2).
Note for replacing the TFM:
The two spacer bolts can remain on the RAID controller.
Installing the new TFM
Example RAID controller
Expansion cards and backup units
RX1330 M4 Upgrade and Maintenance Manual 211
