Preparing the FBU

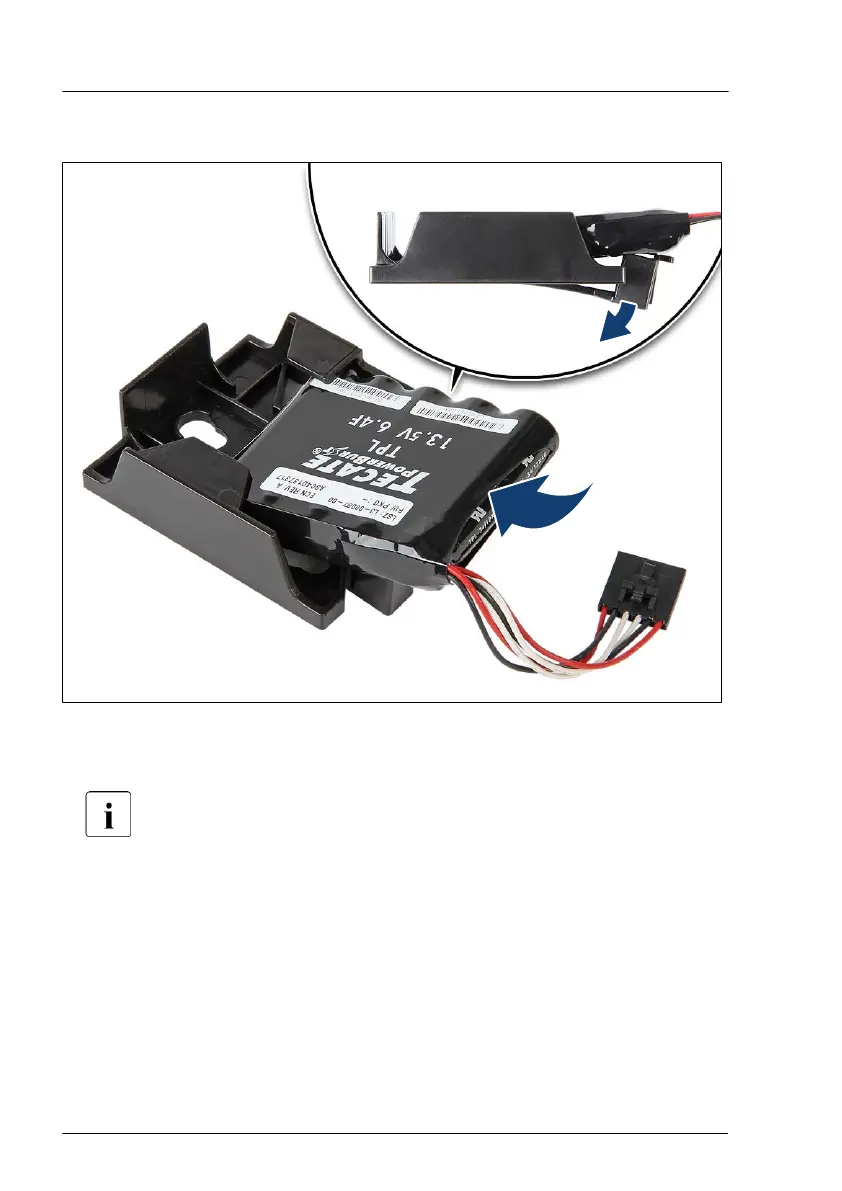

Figure 135: Installing the FBU in the holder
▶
At a slight angle, fit the FBU under both retaining brackets of the holder.
The direction of the cable is different for the FBU345.
For the FBU345 the cable is on the upper side, see "FBU345 in the
holder" on page 221.
▶
Push in the FBU until it locks in place.
Expansion cards and backup units
