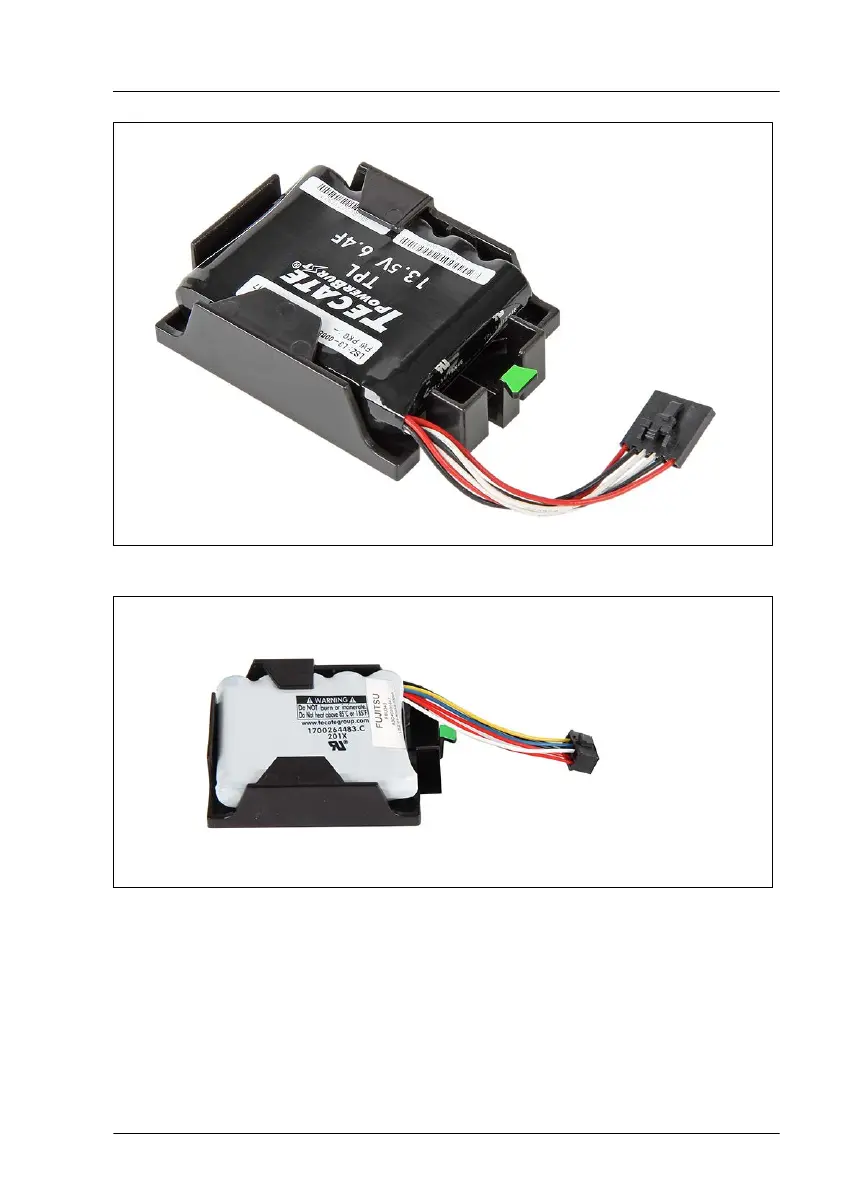

Figure 136: FBU in the holder

Figure 137: FBU345 in the holder

▶

Ensure that the FBU is properly seated in the holder as shown.

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 221
