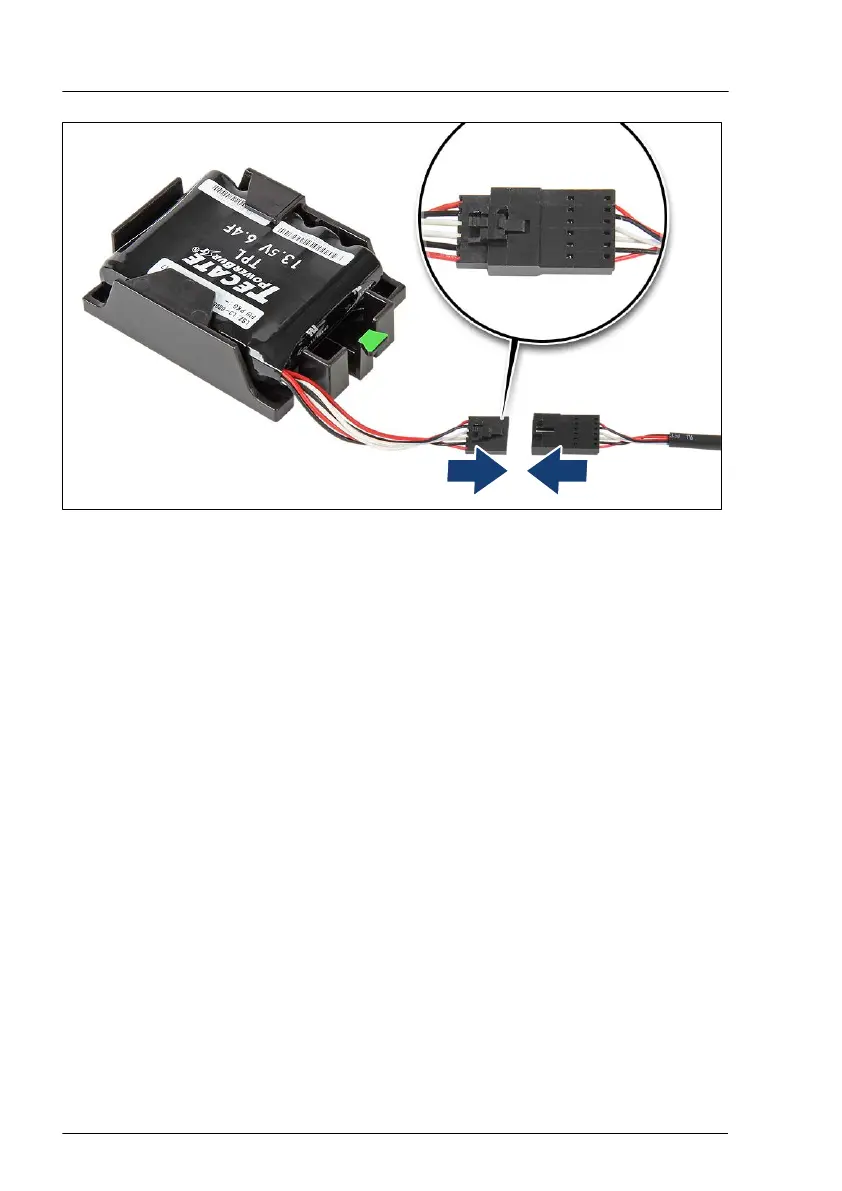

Figure 138: Connecting the FBU adapter cable to the FBU

▶

Connect the FBU cable to the corresponding FBU adapter cable.

Expansion cards and backup units

222 Upgrade and Maintenance Manual RX1330 M4
