Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

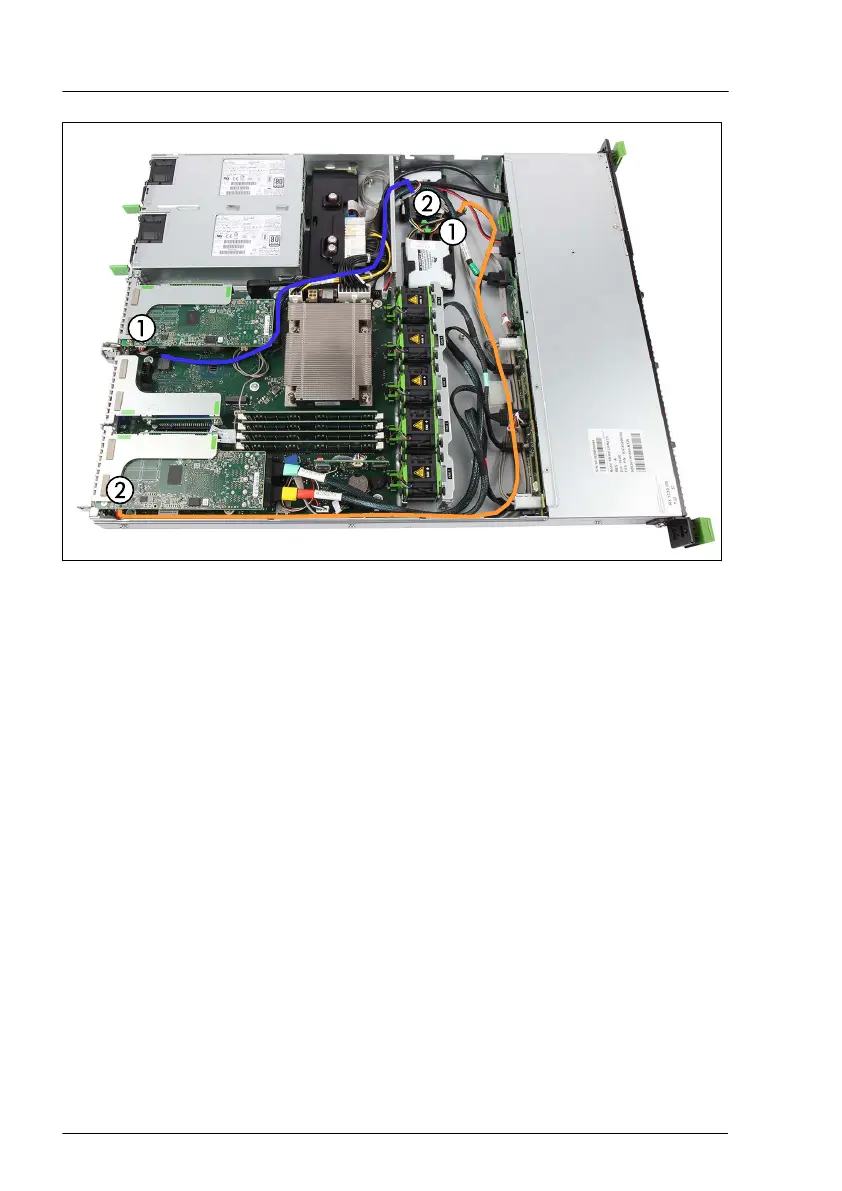

Figure 142: Example - routing FBU345 adapter cables
▶
Connect the FBU345 adapter cables:
1 FBU345 adapter cable, is routed through the recess on top side and
RAID controller in riser module 3
2 FBU345 adapter cable, is routed to bottom side and RAID controller in
riser module 1
Concluding steps
▶
"Reassembling" on page
52
.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Updating expansion card firmware" on page 72.
Expansion cards and backup units
226 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
