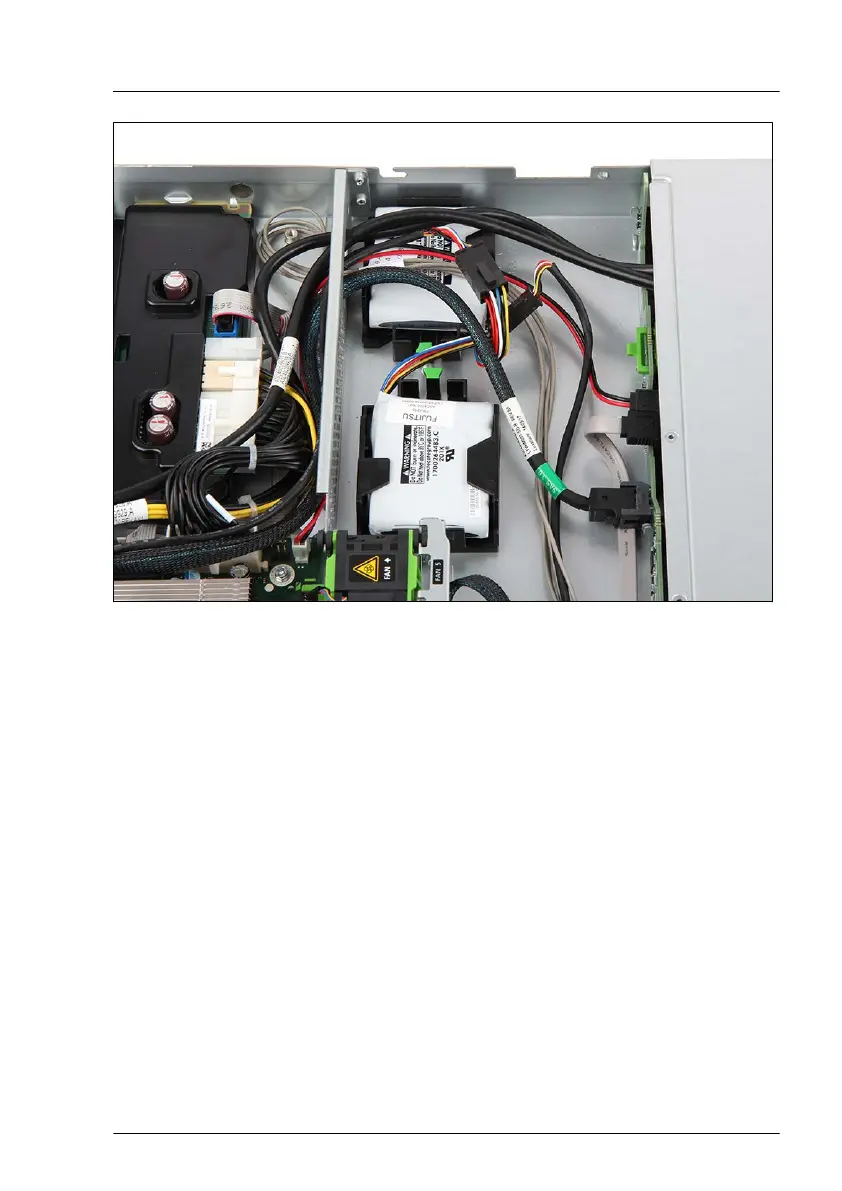

Figure 141: Example - second FBU345

▶

Install the second FBU. Ensure that no cables are damaged.

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 225
