Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

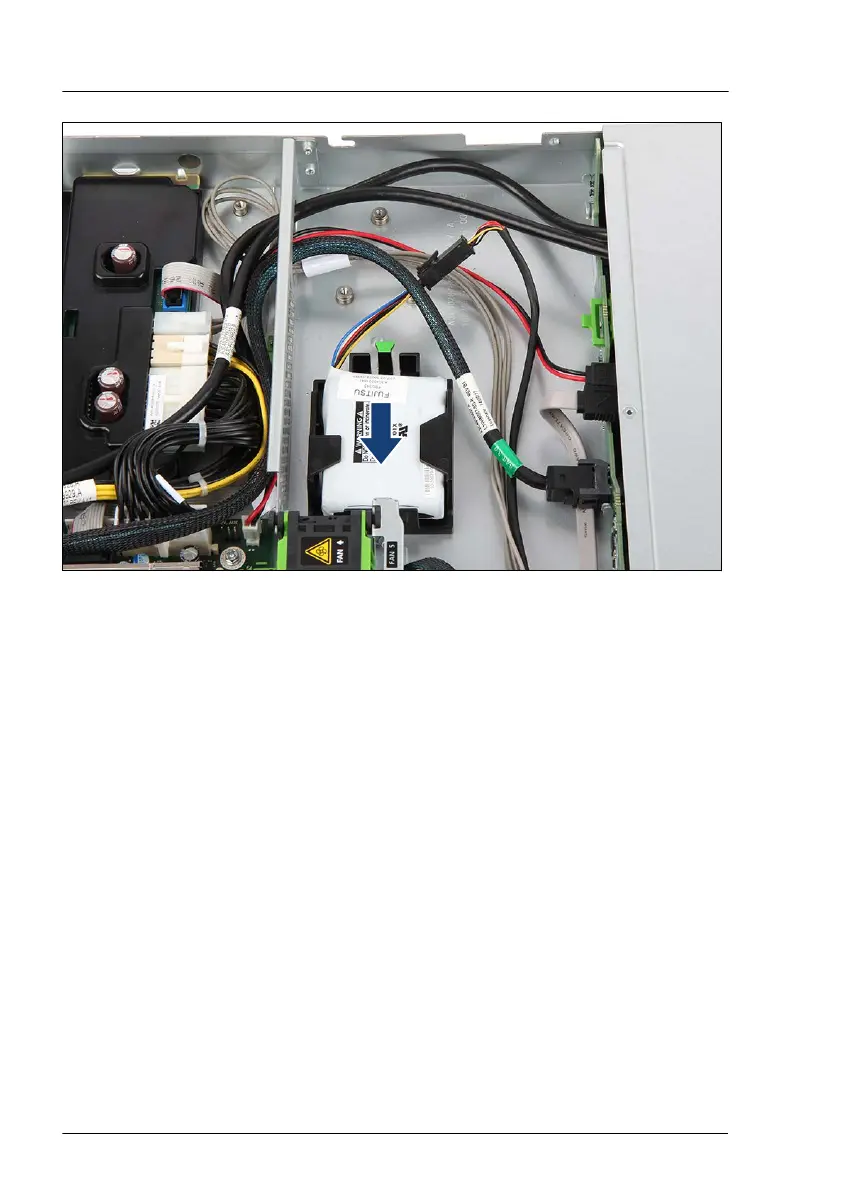

Figure 140: Installing the FBU345 with the holder
▶
Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
▶
Slide the holder in direction of the arrow
.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder.
▶
Ensure that the locking handle on the holder properly snaps in place (see
circle).
▶
If applicable, install the TFM, see "Installing the new TFM" on page 211.
▶
Connect the FBU adapter cable to the TFM, see "Installing the new TFM"
on page 211.
▶
Install the RAID controller with the TFM, see "Installing an expansion card"
on page 196.
Expansion cards and backup units
224 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
