Removing the FBU with the holder

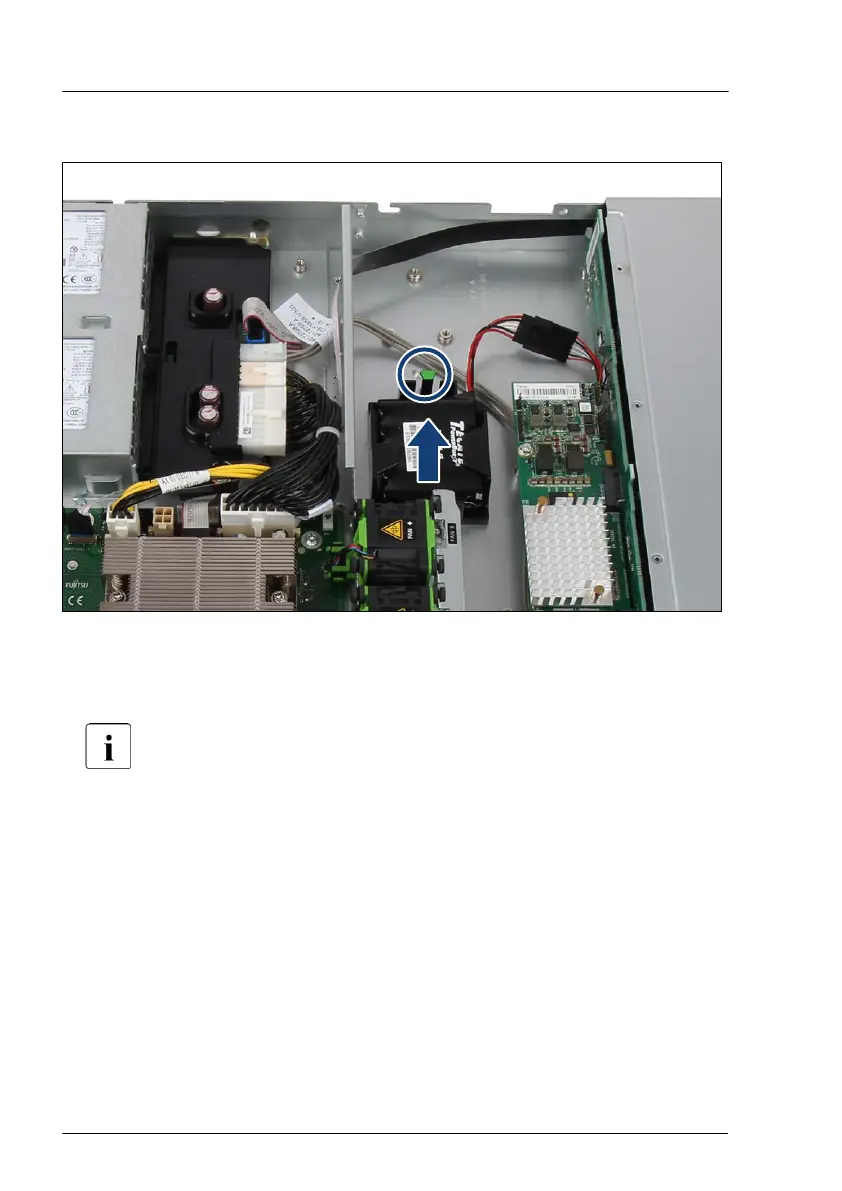

Figure 143: Removing the FBU with the holder
▶
Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
▶
Lift the holder out of the chassis.
Expansion cards and backup units
228 Upgrade and Maintenance Manual RX1330 M4
