Disconnecting the FBU cable from the FBU

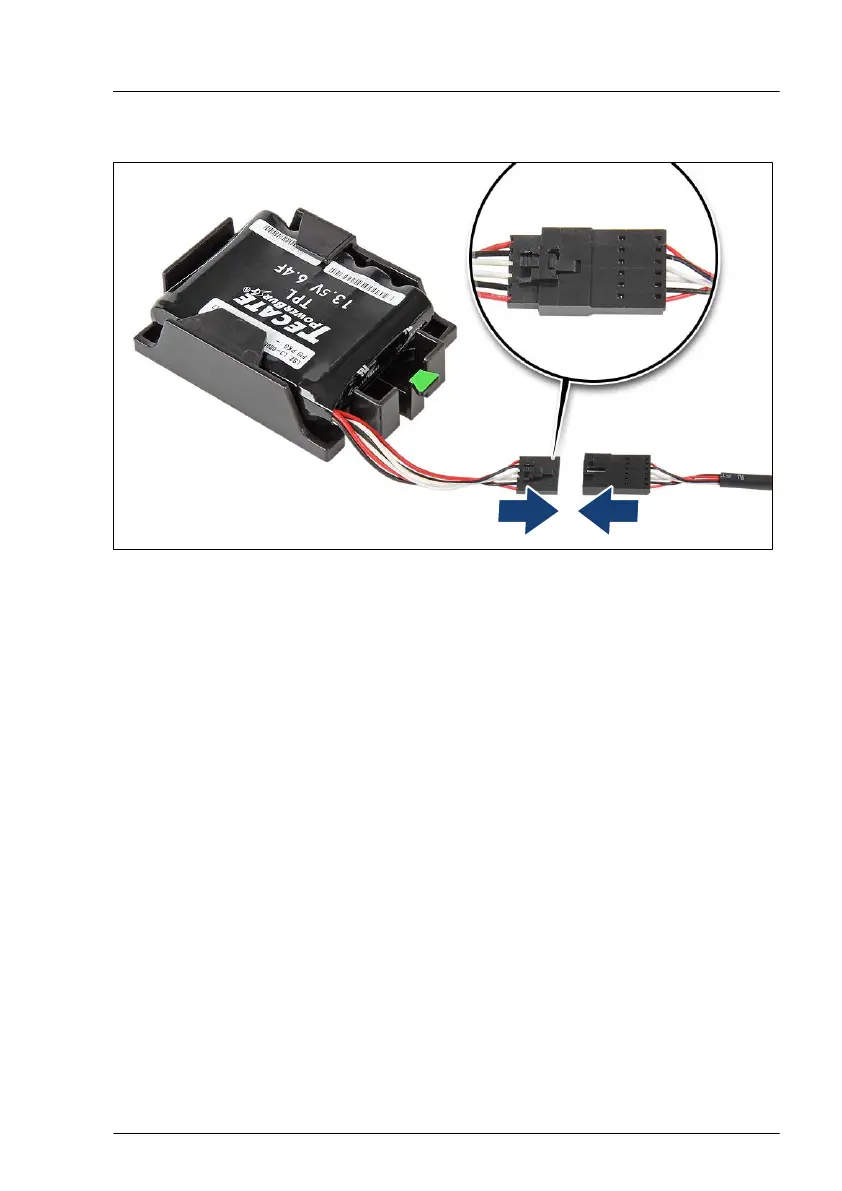

Figure 144: Disconnecting the FBU cable from the FBU

▶

Disconnect the FBU cable from the FBU.

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 229
