Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Removing the heat sink

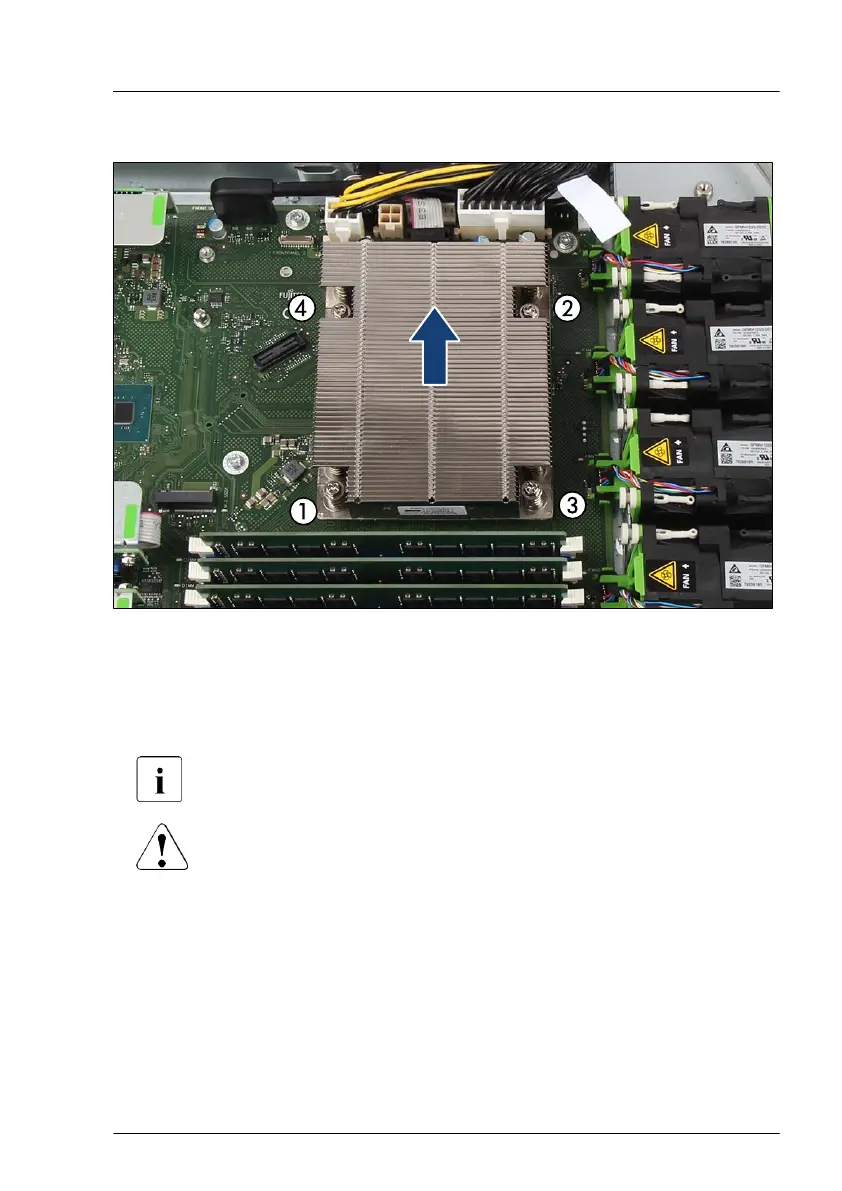

Figure 154: Removing the heat sink
▶
Loosen the four screws on the heat sink in a crossover pattern according to
the numbering (1-4).
▶
Carefully twist the heat sink to detach it from the CPU.
This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
CAUTION
▶
Pay special attention not to damage any system board
components surrounding the CPU socket.
▶
Lift the heat sink out of the chassis.
▶
Remove the residual thermal paste from the underside of the heat sink and
the surface of the CPU.
▶
Clean the underside of the heat sink and the surface of the CPU using a
lintfree cloth.
Processor (CPU)
RX1330 M4 Upgrade and Maintenance Manual 245

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
