Removing the CPU

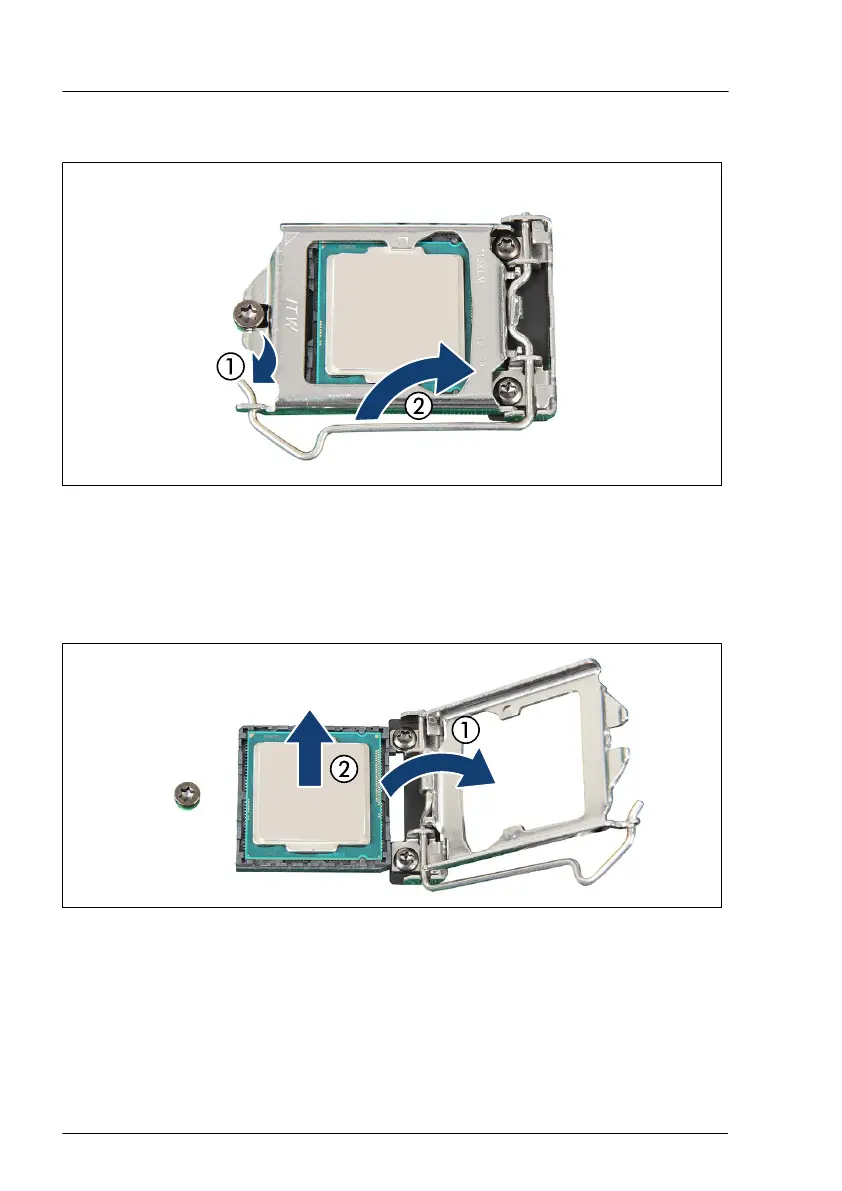

Figure 155: Unlatching the socket release lever
▶
Unlatch the socket release lever by pushing it down and away from the
socket (1).
▶
Fold back the socket release lever (2).
Figure 156: Removing the CPU
▶
Rotate the socket release lever to lift the load plate away from the socket
(1).
Make sure that the load plate is in the fully open position.
▶
Carefully remove the CPU from its socket in a vertical motion (2).
Processor (CPU)
246 Upgrade and Maintenance Manual RX1330 M4
