Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

CAUTION
▶
Be careful not to touch or bend the spring contacts on the CPU
socket.
Installing the CPU
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
If applicable, remove the protective cap from the bottom side of the CPU.

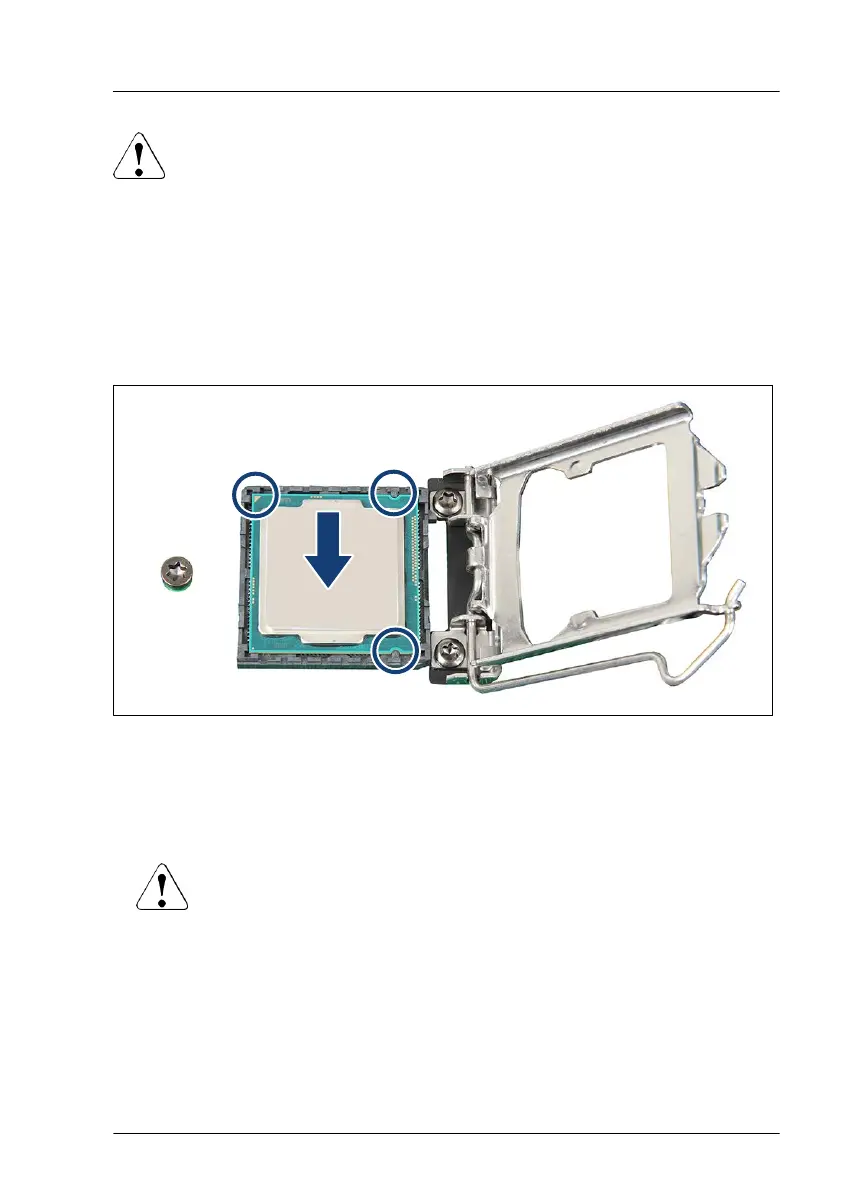

Figure 157: Installing the CPU
▶
Hold the CPU with your thumb and index finger. Make sure that the notches
on the CPU align with the posts on the socket (see circles).
▶
Lower the CPU straight down without tilting or sliding it in the socket.
CAUTION
▶
Ensure that the CPU is level in the socket.
▶
Be careful not to touch or bend the pins on the CPU socket.
▶
Never touch the underside of the CPU. Even minor soiling such
as grease from the skin can impair the CPU’s operation or
destroy the CPU.
▶
Ensure not to scrape or dent the CPU edges.
Processor (CPU)
RX1330 M4 Upgrade and Maintenance Manual 247

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
