Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Installing the heat sink

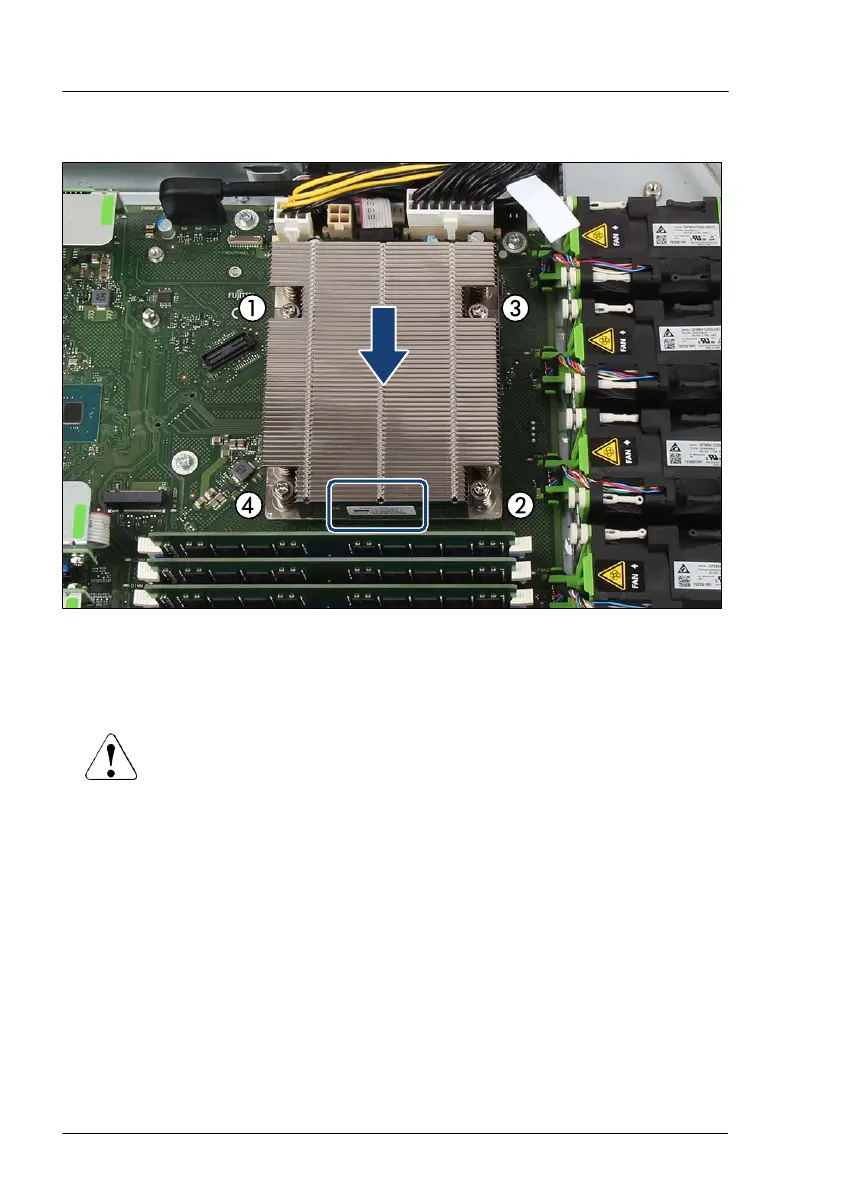

Figure 163: Installing the heat sink
▶
Ensure that the heat sink cooling fins match the direction of the airflow!
▶
Carefully seat the heat sink on the four threaded holes as shown.
CAUTION
▶
Ensure that the screws on the heat sink are properly seated on
the threaded holes.
▶
Fasten it in a crossover pattern with four screws according to the numbering
(torque: 0.6 Nm, not applicable for Japan).
Notice the position of the air flow label.
Concluding steps
▶
"Installing the air duct" on page
64
.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
Processor (CPU)
252 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
