Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

3.5-inch HDD configuration

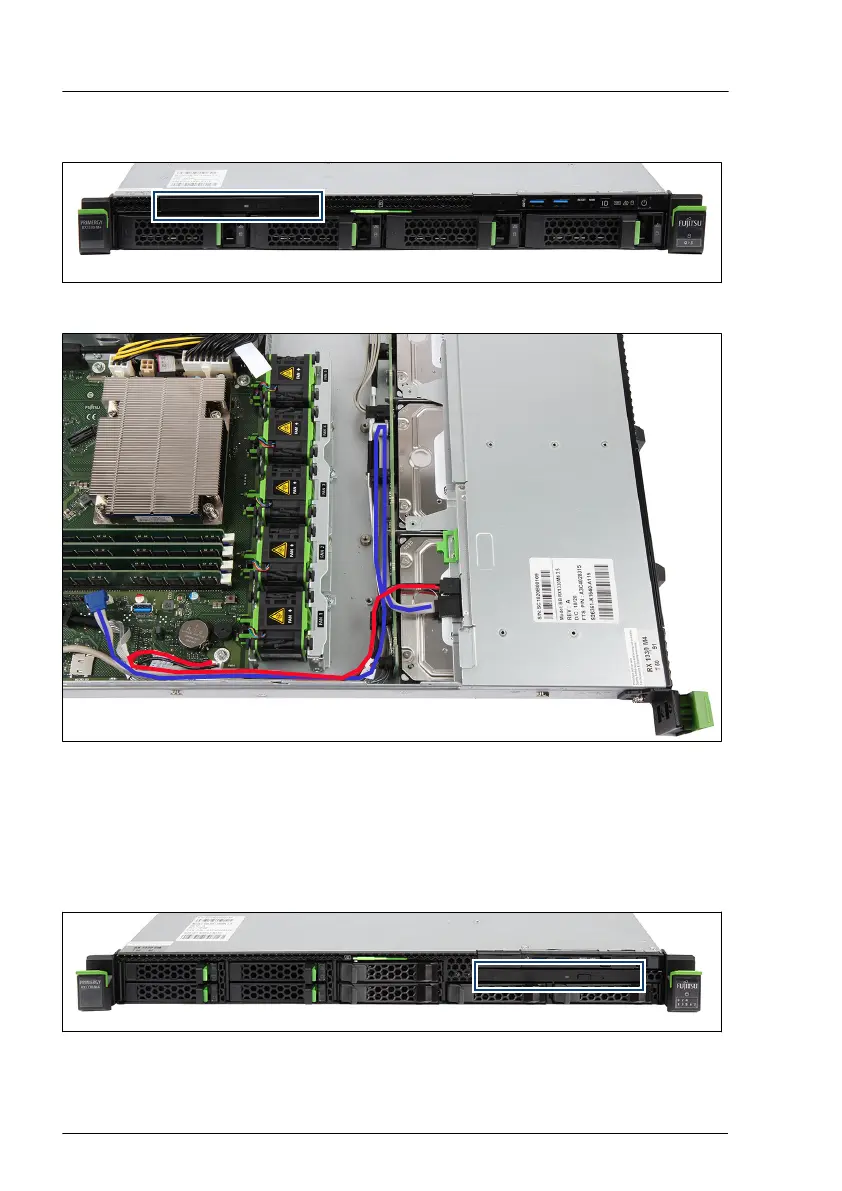

Figure 164: Position of the ODD bay - example 3.5-inch HDD configuration
Figure 165: Routing ODD cables - example 3.5-inch HDD configuration
Blue line shows routing of ODD data cable.
Red line shows routing of ODD power cable.
2.5-inch HDD configuration
Figure 166: Position of the ODD bay - example 2.5-inch HDD configuration
Accessible drives
256 Upgrade and Maintenance Manual RX1330 M4
