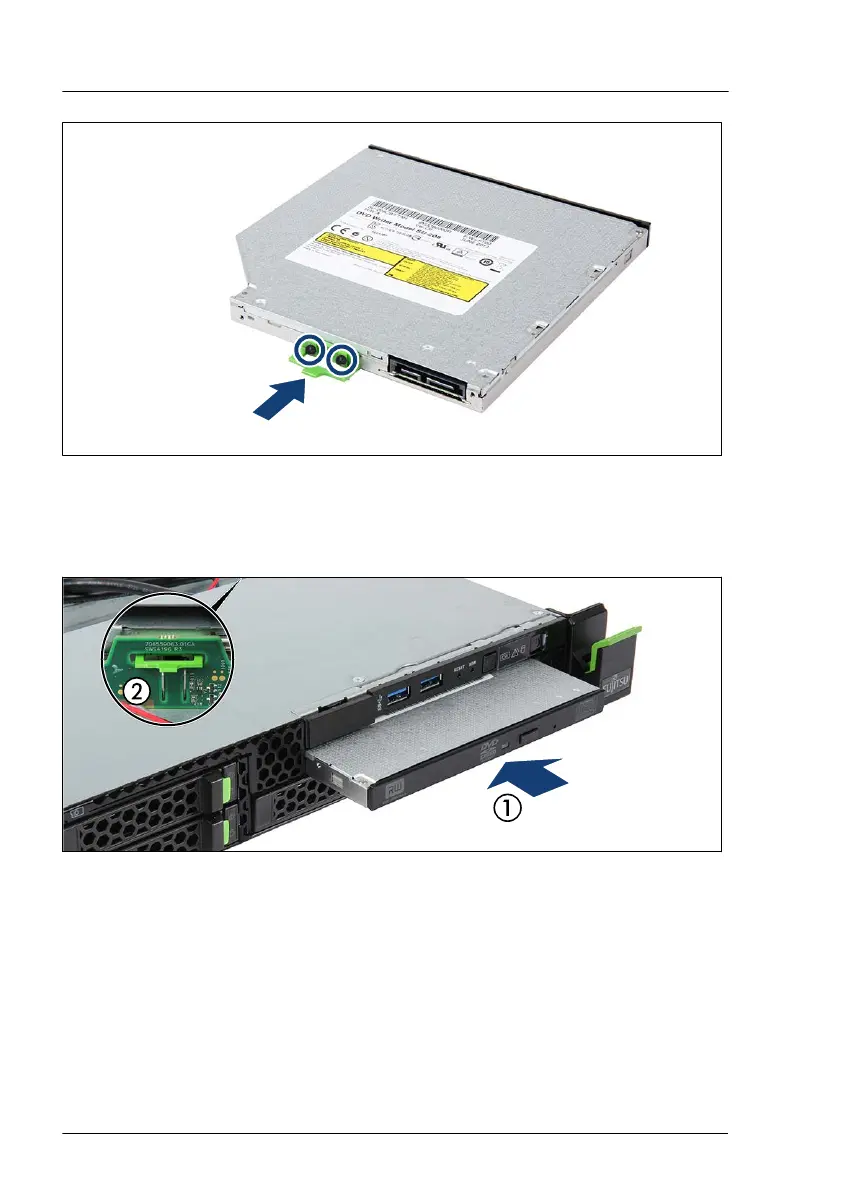

Figure 170: Installing the ODD latch on the ODD
▶
Fasten the ODD latch with two screws to the rear side of the ODD (see
circles).
Figure 171: Installing the ODD
▶
Push the ODD into the bay (1) simultaneously pressing the front of the ODD
slightly down until the ODD latch engages (2).
Accessible drives
260 Upgrade and Maintenance Manual RX1330 M4
