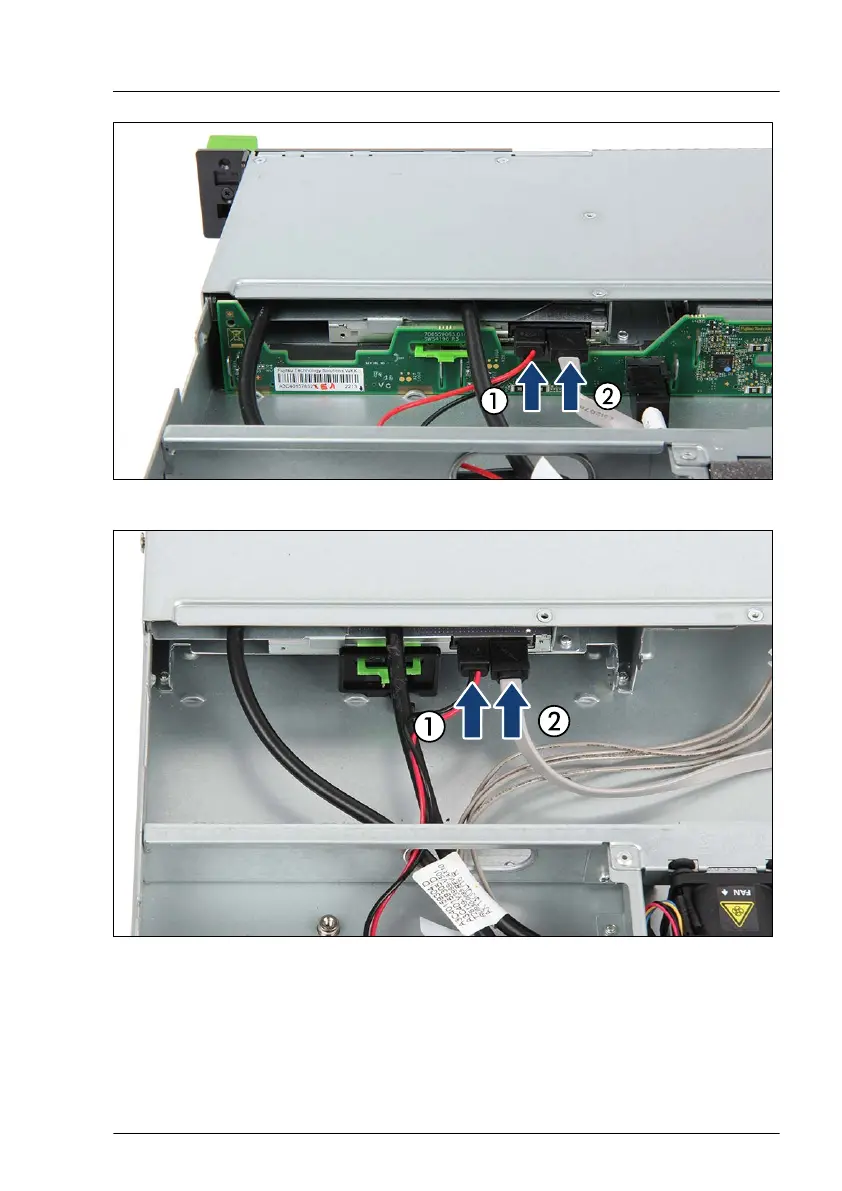

Figure 172: Connecting cables (example with 2nd 2.5-inch HDD backplane)

Figure 173: Connecting cables (example without 2nd 2.5-inch HDD backplane)

▶

Connect the ODD power cable (1) to the ODD.

▶

Connect the SA

A cable (2) to the ODD.

Accessible drives

RX1330 M4 Upgrade and Maintenance Manual 261
