Removing the ODD

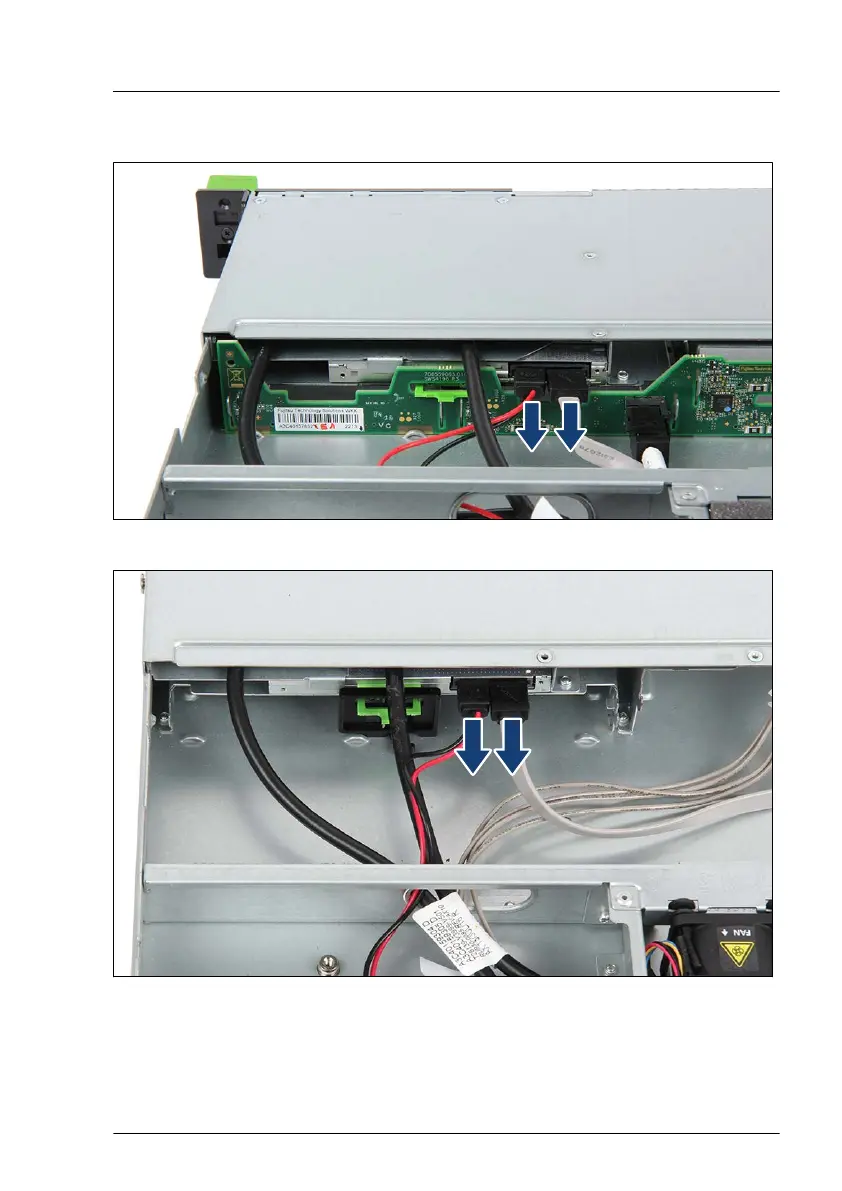

Figure 174: Disconnecting cables (example with 2nd 2.5-inch HDD backplane)

Figure 175: Disconnecting cables (example without 2nd 2.5-inch HDD backplane)

▶

Disconnect the ODD power cable and the SAT

A cable from the ODD.

Accessible drives

RX1330 M4 Upgrade and Maintenance Manual 263
