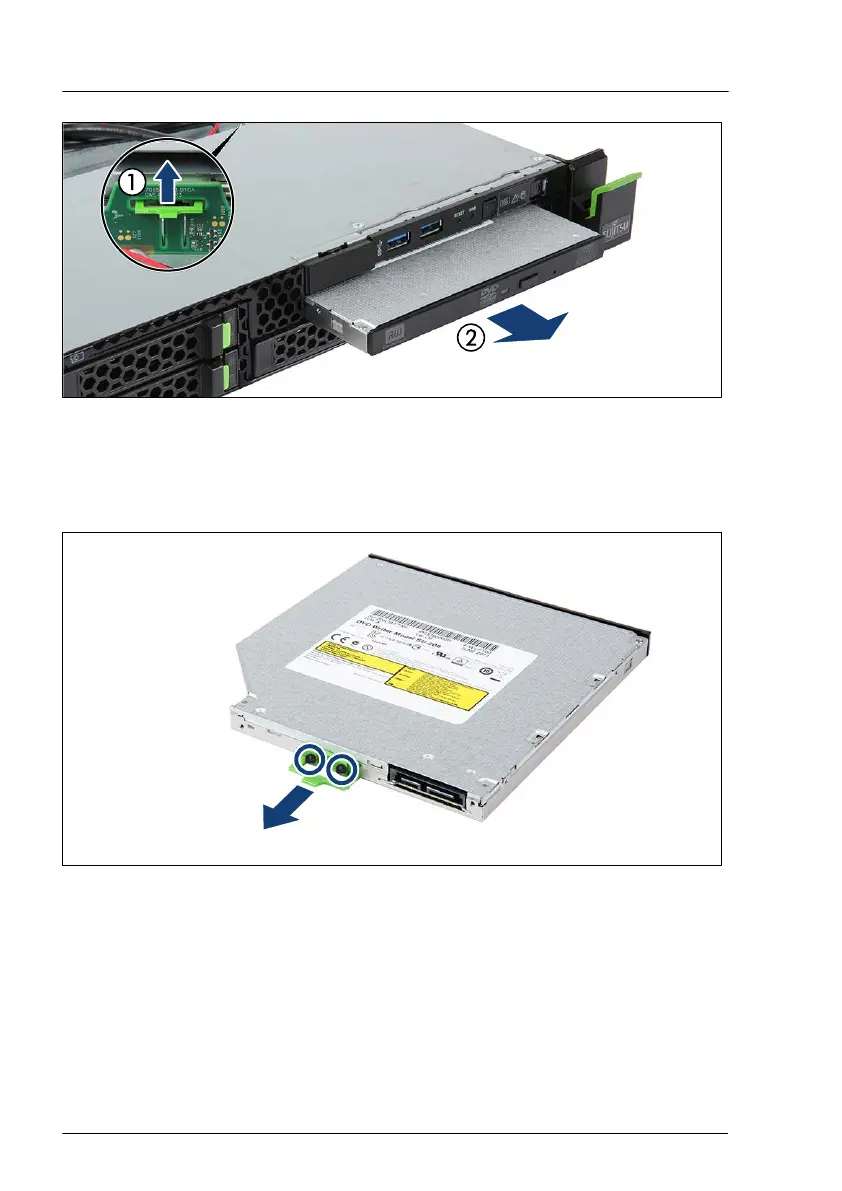

Figure 176: Removing the ODD
â–¶
Press the ODD latch in direction of the arrow until it disengages (1).
â–¶
Pull the ODD out of the bay (2).
Figure 177: Removing the ODD latch from the ODD
â–¶
Remove the two screws (see circles).
â–¶
Remove the ODD latch.
â–¶
If no new ODD will be installed:
â–¶
Fasten the ODD latch with two screws to the fan bridge, see "ODD latch
on fan bridge" on page
259.
Accessible drives
264 Upgrade and Maintenance Manual RX1330 M4
