Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

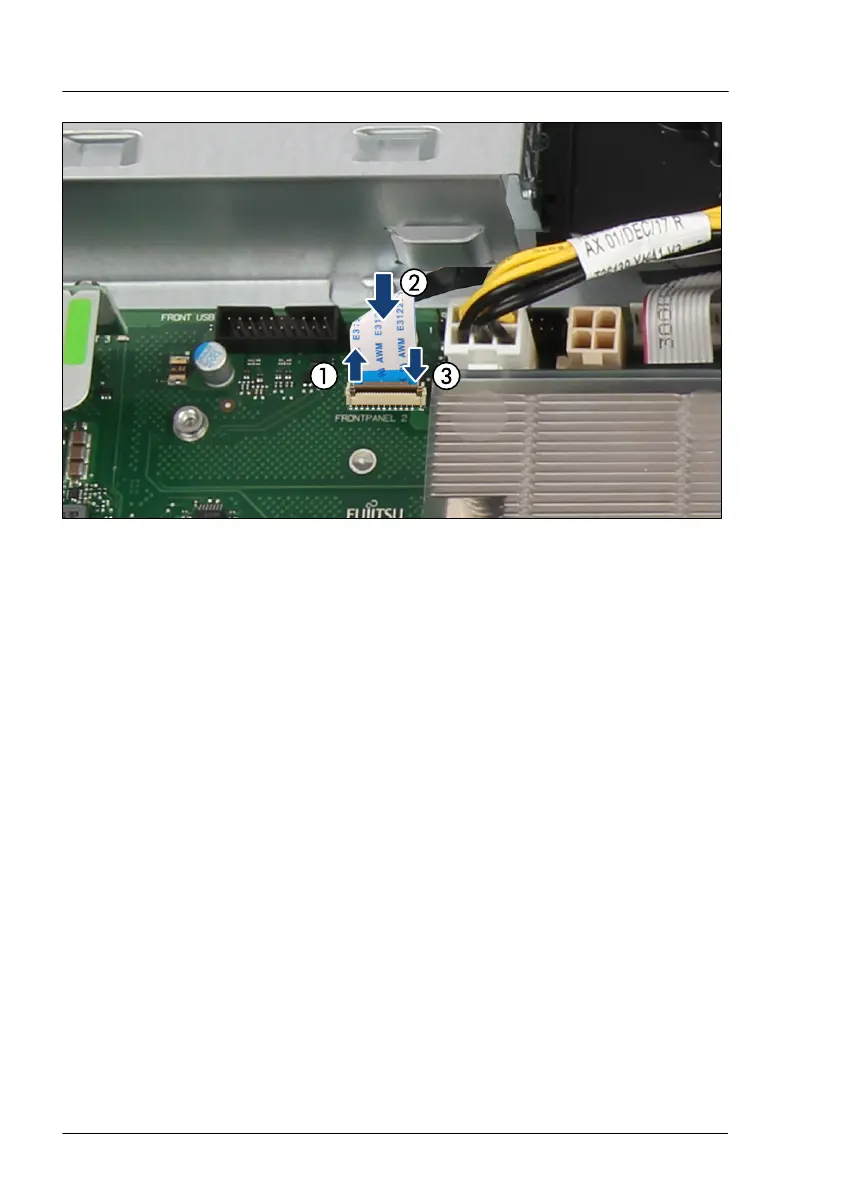

Figure 195: Connecting the front panel cable
▶
Pull up the locking bar (1).
▶
Bend the cable 90 degrees by hand for easier routing.
▶
Insert the front panel cable (2). Please make sure that the front panel cable
is assembled as shown (blue marking).
▶
Press down the locking bar (3).
Concluding steps
▶
"Installing the air duct" on page
64
.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Using the Chassis ID Prom Tool" on page 91.
▶
"Verifying system information backup or restore" on page 71.
▶
"Resuming BitLocker functionality" on page 86.
Front panel
282 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
