Installing the front panel on QRL

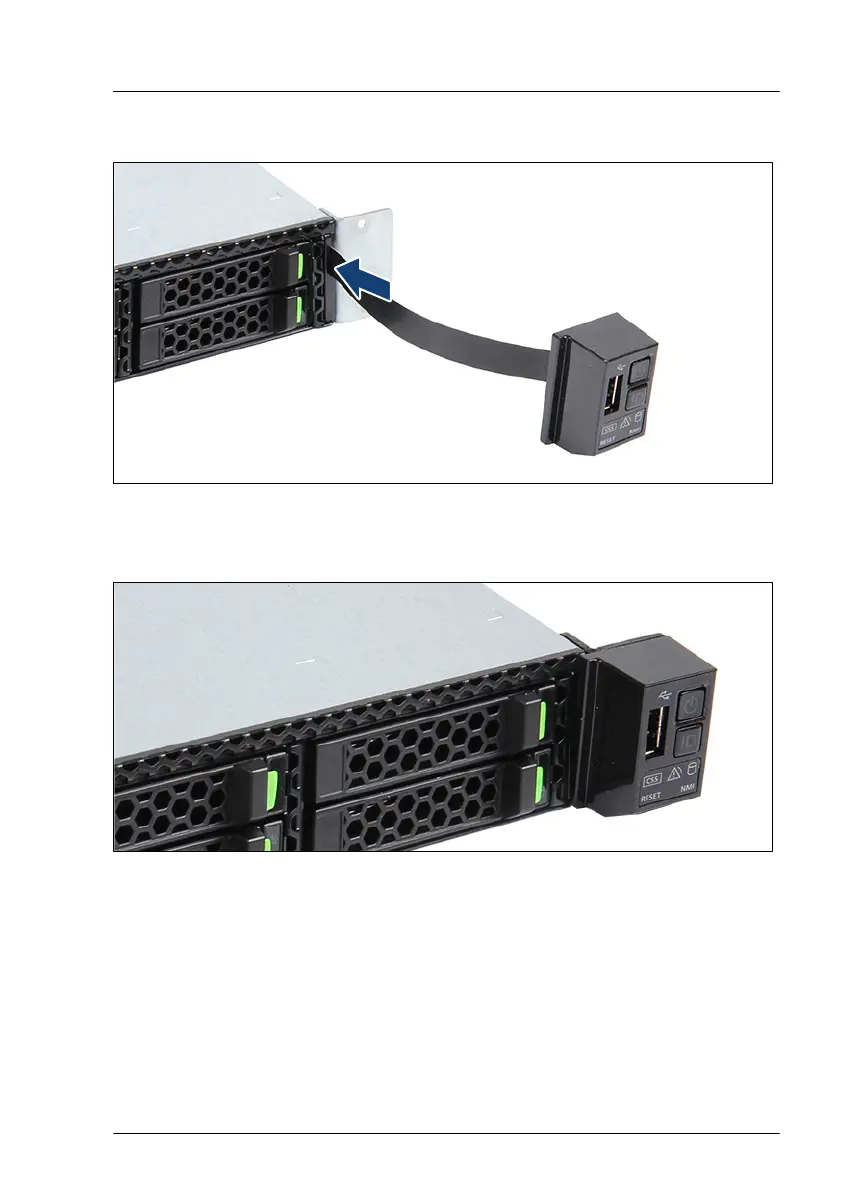

Figure 193: Installing the front panel (A)
▶
Thread the front panel cable through the opening.
Figure 194: Installing the front panel (B)
▶
Position the front panel on the ear.
▶
Fasten the front panel with two screws (see Figure 191
).
▶
Thread the front panel cable through the opening (see Figure 190).
Front panel
