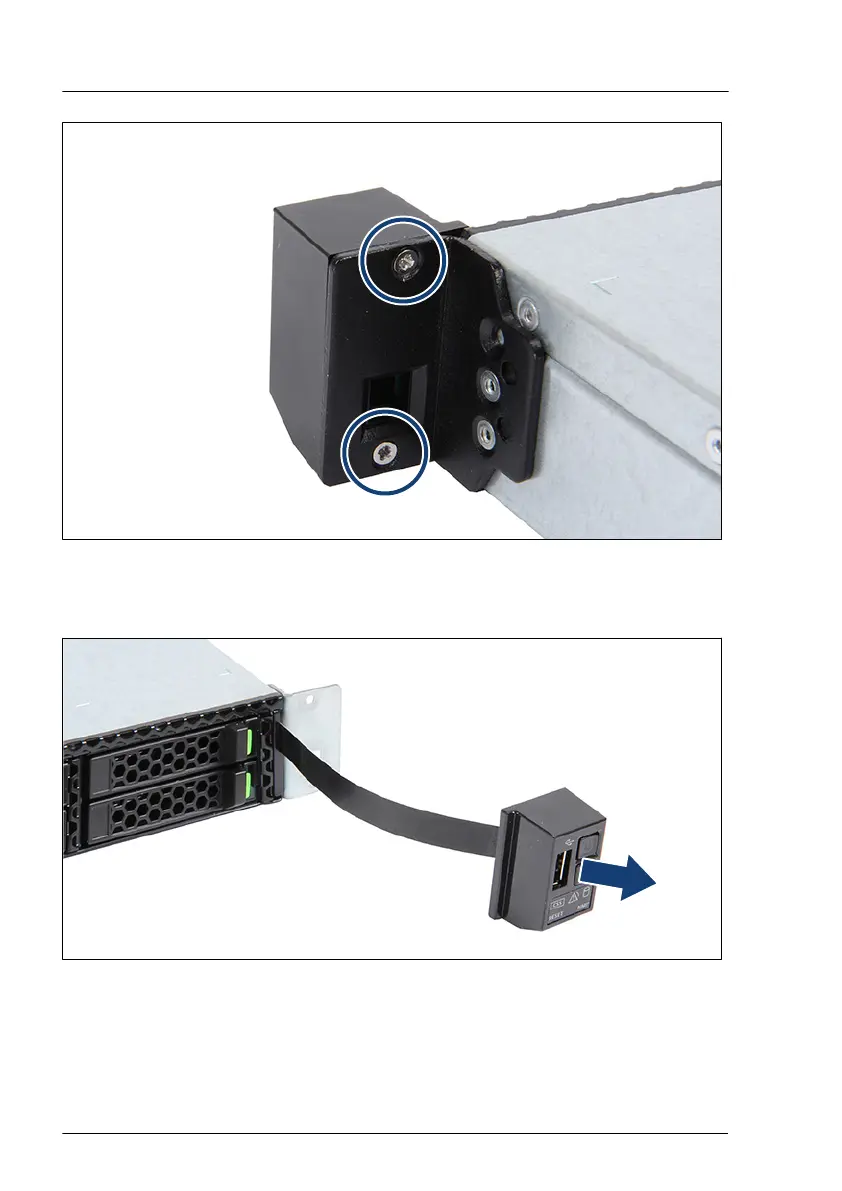

Figure 191: Removing the front panel on QRL (A)

▶

Remove the two screws (see circles).

Figure 192: Removing the front panel on QRL (B)

▶

Remove the front panel.

▶

Pull the front panel cable out of the opening.

Front panel

280 Upgrade and Maintenance Manual RX1330 M4
