15.4 Trusted Platform Module (TPM)
15.4.1 TPM kit

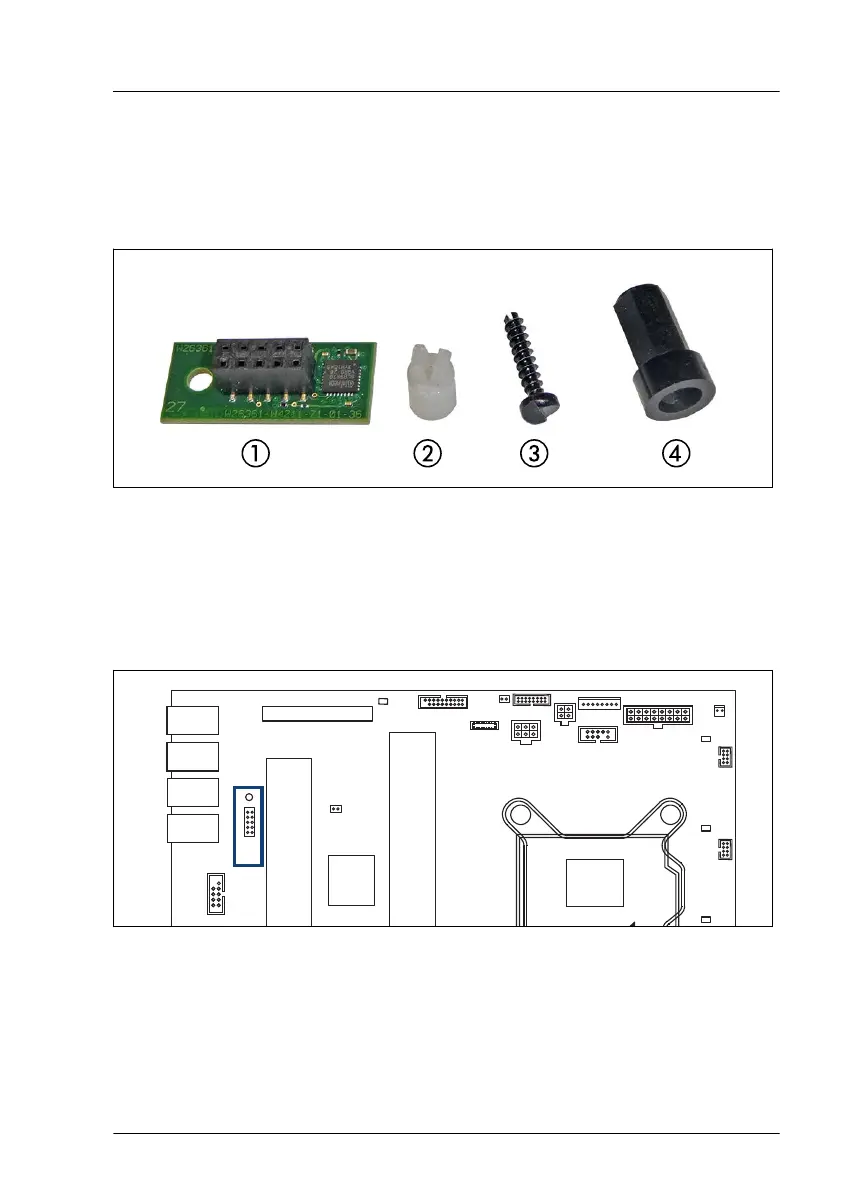

Figure 203: TPM installation kit
1 TPM
2 TPM spacer
3 Special screw for TPM
4
TPM bit insert for TPM special screw
15.4.2 Position of the TPM
CPU
USB 2.0
USB 2.0
USB 3.1
Gen 2
M.2
SSD1
TPM
Slot 3
FAN4
JP8
PWR1
Front
Panel2
Front USB
Front Panel1
PWR2
PWR3
P30
PWR MAIN
PC98
SERIAL
Reset
Intel
C246
FAN5
USB 3.1
Gen 2
Figure 204: Position on the system board
