15.4.3 Installing the TPM
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Bit screw driver
–
TPM bit insert
(*)
(*)
For Japan:
–
TPM module fixing tool (S26361-F3552-L909)
Preliminary steps
▶
"Suspending BitLocker functionality" on page 65.
▶
"Shutting down the server" on page
45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
▶
"Removing the air duct" on page 63.
▶
Remove the riser module 3, see "Removing a riser module" on page 59.
Installing the TPM

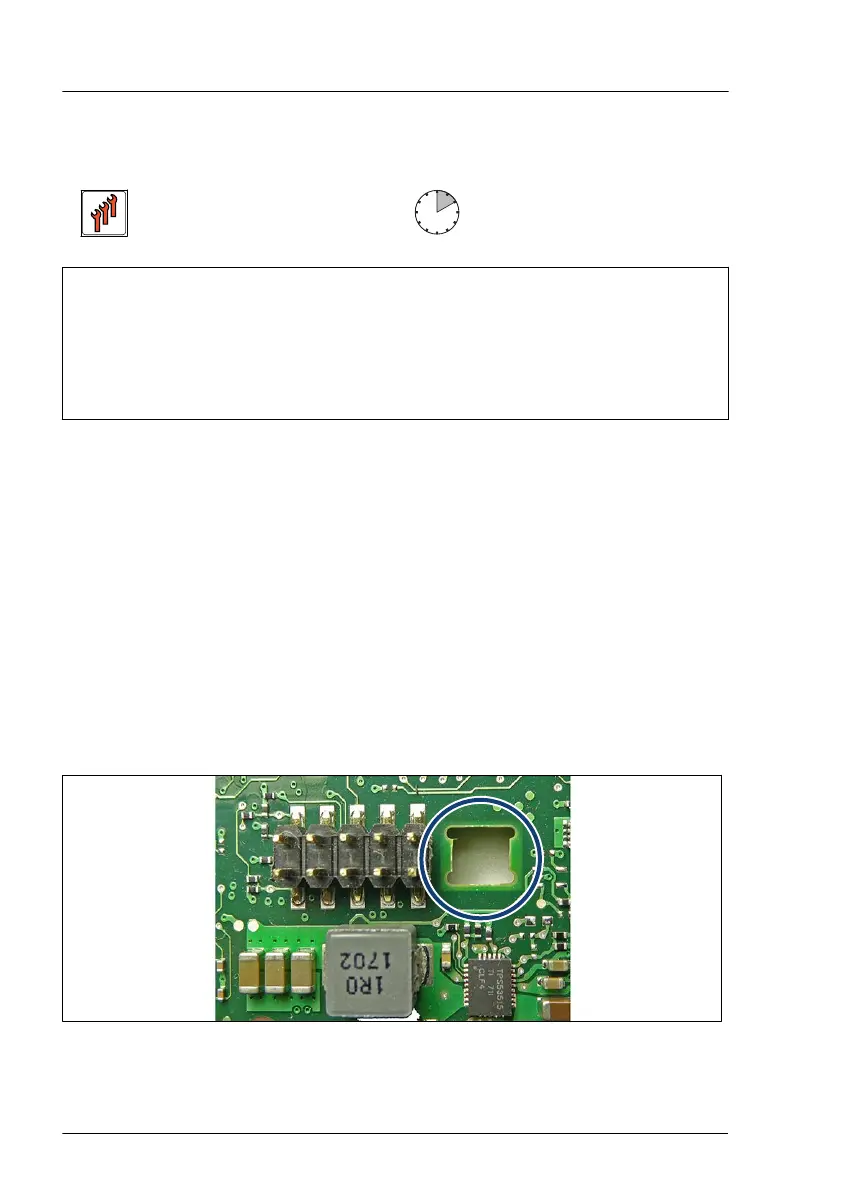

Figure 205: Position for the TPM spacer
System board and components
296 Upgrade and Maintenance Manual RX1330 M4
