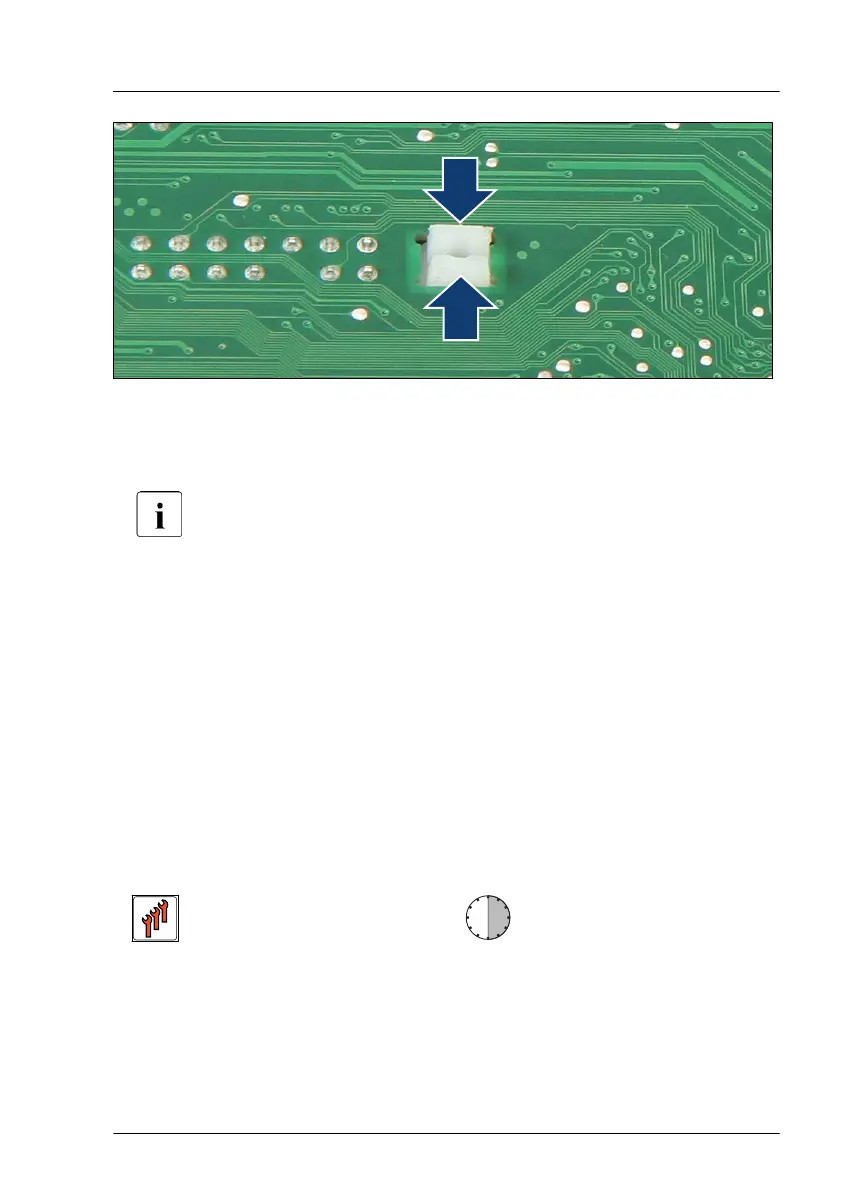

Figure 210: Removing the TPM spacer
▶
Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
If the TPM is to be replaced, the TPM spacer may remain on the
system board.
▶
Install the system board, see "Installing the new system board" on page 331
.
Concluding steps
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Resuming BitLocker functionality" on page 86.
15.4.5 Replacing the TPM
Field Replaceable Unit
(FRU)
Hardware: 30 minutes
System board and components
RX1330 M4 Upgrade and Maintenance Manual 303
