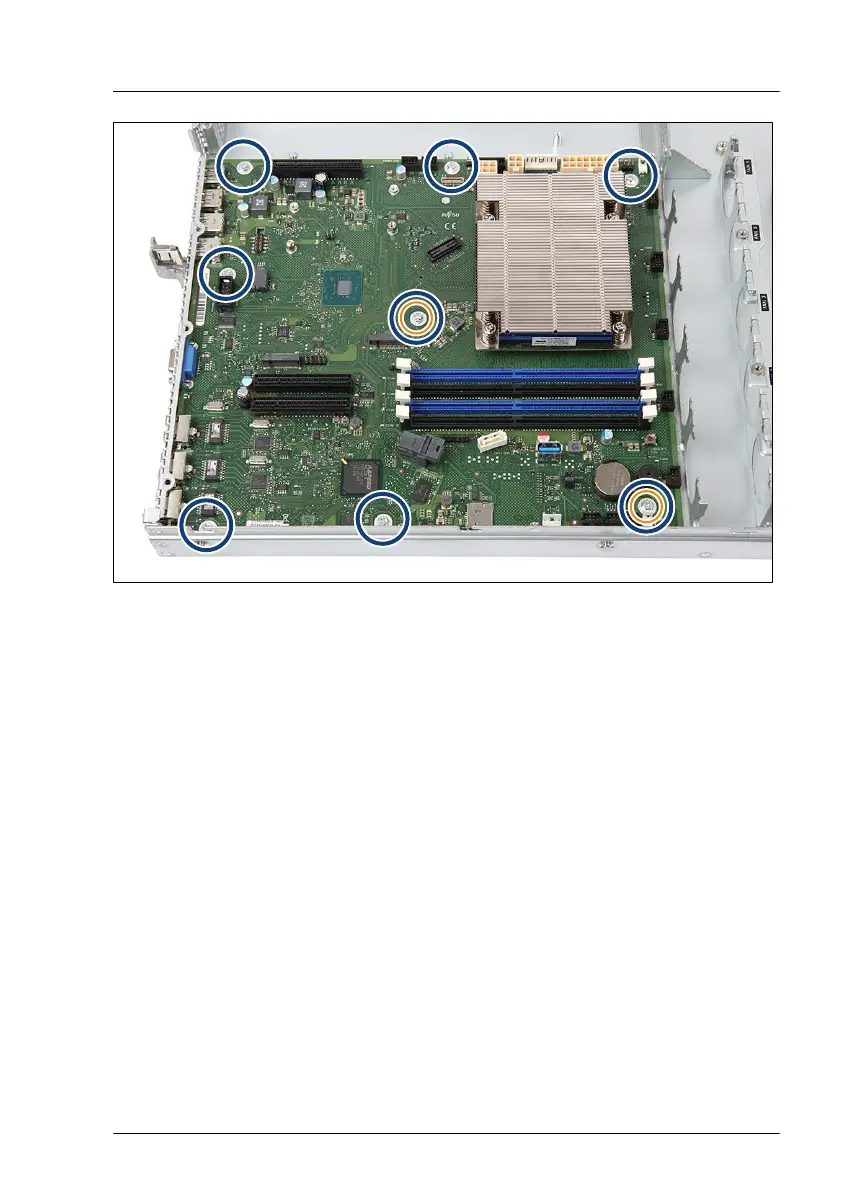

Figure 226: System board - Position of the screws

▶

Remove the eight screws from the system board (see circles).

System board and components

RX1330 M4 Upgrade and Maintenance Manual 329
