Example with 2.5-inch HDDs/PCIe SSDs and hot-plug PSUs

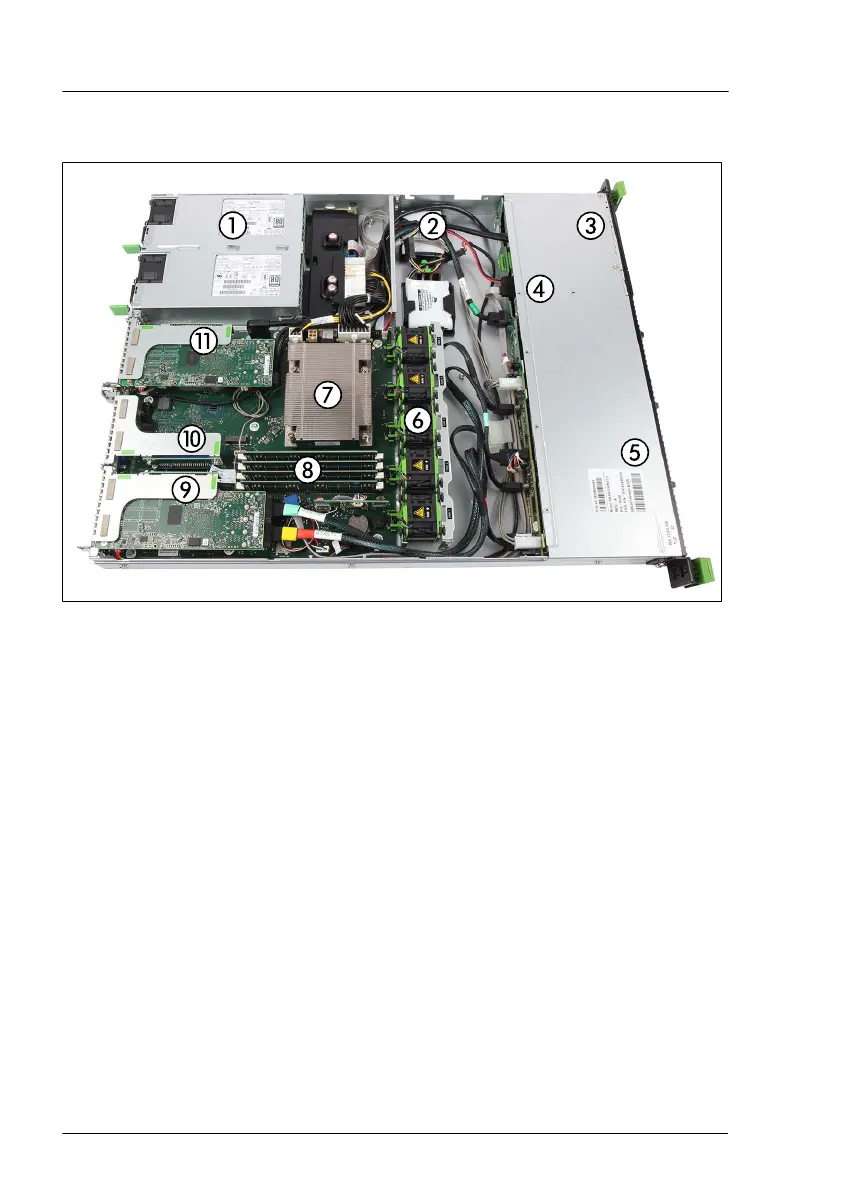

Figure 236: Server interior - 2.5-inch HDDs/PCIe SSDs and hot-plug PSUs
1 Up to 2 hot-plug PSUs / dummy cover
2 FBU345 (2x)
3
Front panel module
4 ODD (option) / dummy cover
5 Up to 4x 2.5-inch HDDs and up to 4x
2.5-inch PCIe SSDs / dummy modules
6 Fan modules (5x)
7 CPU
8 Main memory
9 Riser module 1
10 Riser module 2
11 Riser module 3
Appendix A
340 Upgrade and Maintenance Manual RX1330 M4
