Fujitsu PRIMERGY RX1330 M4

Example with 10x 2.5-inch HDDs and hot-plug PSUs

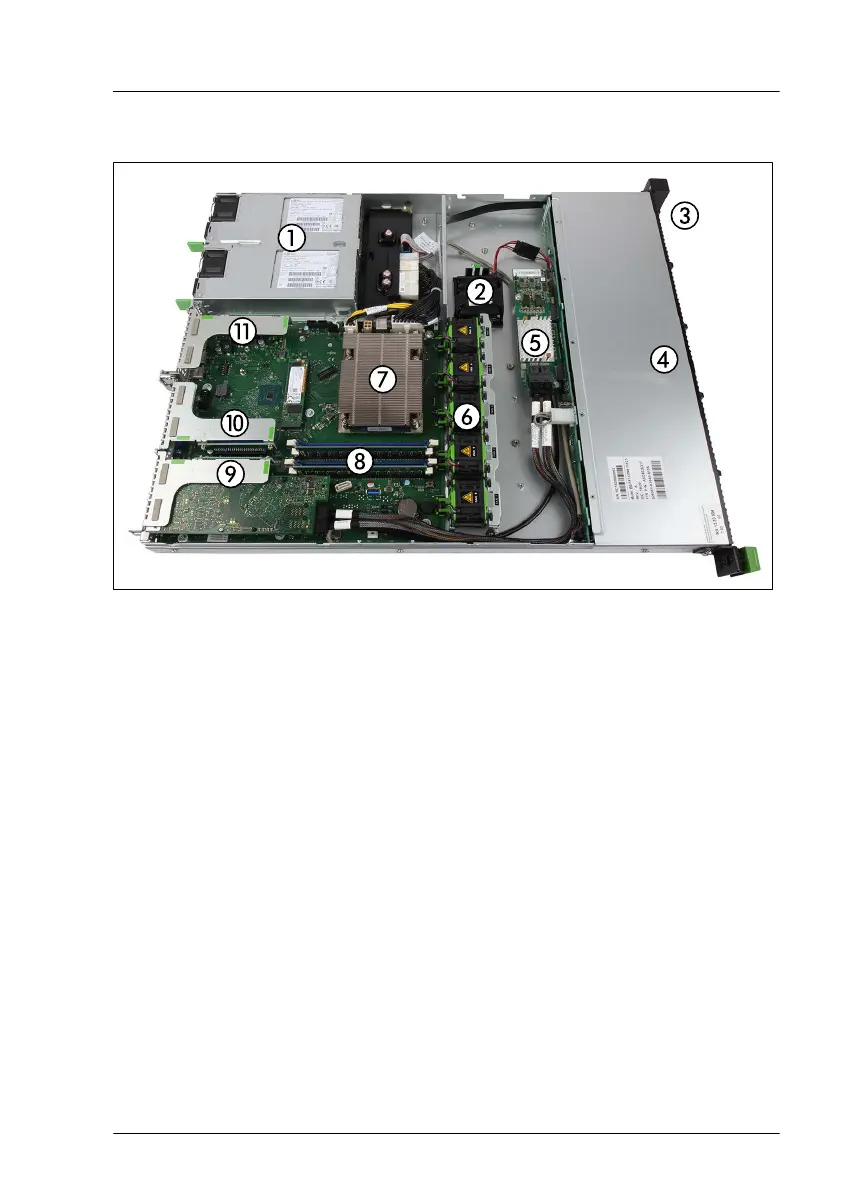

Figure 237: Server interior - 10x 2.5-inch HDDs and hot-plug PSUs
1 Up to 2 hot-plug PSUs / dummy cover
2 FBU
3
Front panel on ear
4 Up to 10x 2.5-inch HDDs / dummy
modules
5 SAS expander board
6 Fan modules (5x)
7 CPU
8 Main memory
9 Riser module 1
10 Riser module 2
11 Riser module 3
