Fujitsu PRIMERGY RX1330 M4

7RX1330 M4

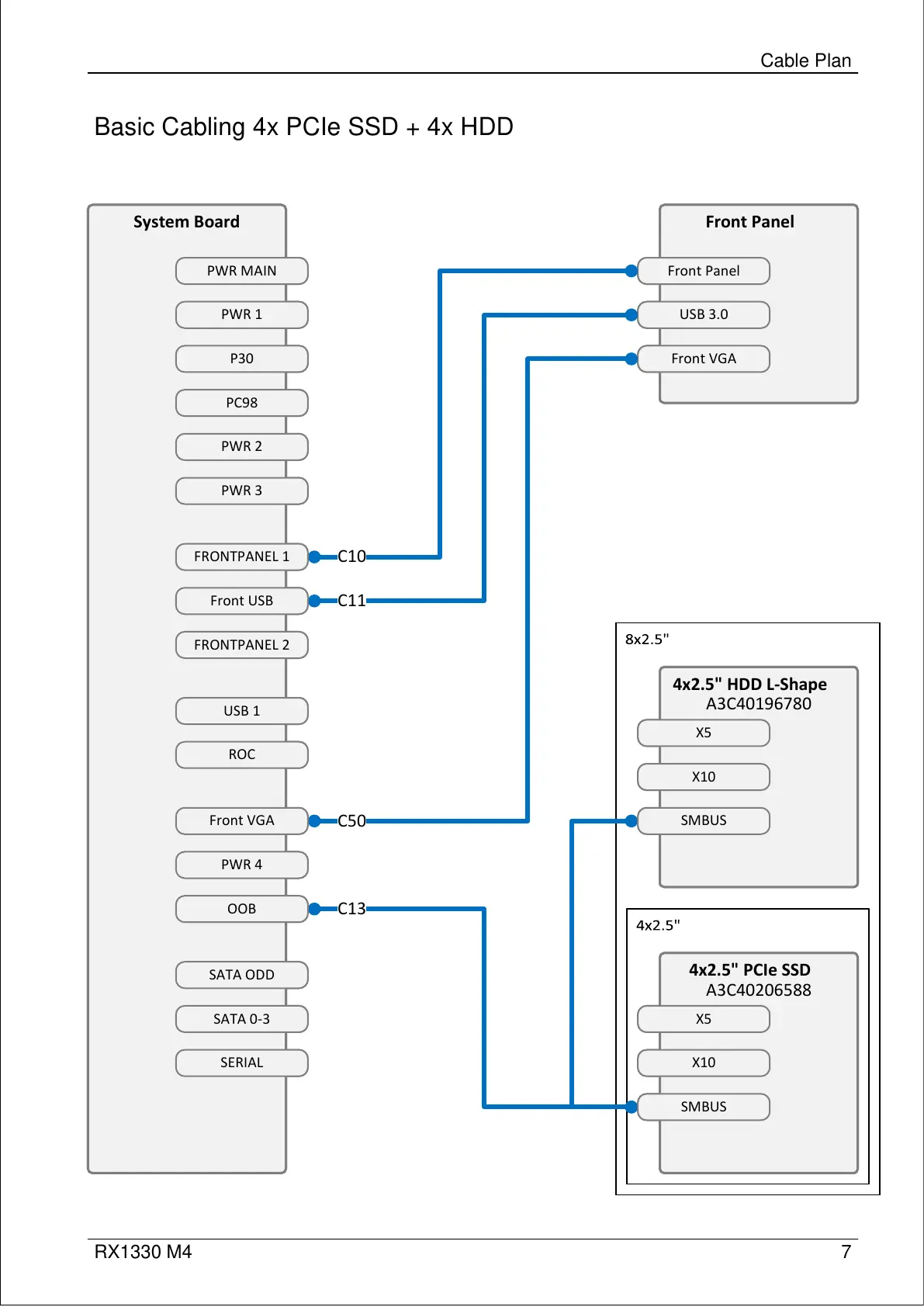

Basic Cabling 4x PCIe SSD + 4x HDD
Cable Plan
Front Panel
Front Panel
USB 3.0
Front VGA
Front Panel
Front Panel
USB 3.0
Front VGA
C10
C11
C50
C13
4x2.5" HDD L-Shape
X5
X10
SMBUS
A3C40196780
4x2.5" HDD L-Shape
X5
X10
SMBUS
A3C40196780
4x2.5" PCIe SSD
X5
X10
SMBUS
A3C40206588
4x2.5" PCIe SSD
X5
X10
SMBUS
A3C40206588
System Board
PWR MAIN
PWR 1
P30
PWR 2
PWR 3
FRONTPANEL 1
Front USB
FRONTPANEL 2
USB 1
Front VGA
PWR 4
OOB
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
