Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

8RX1330 M4

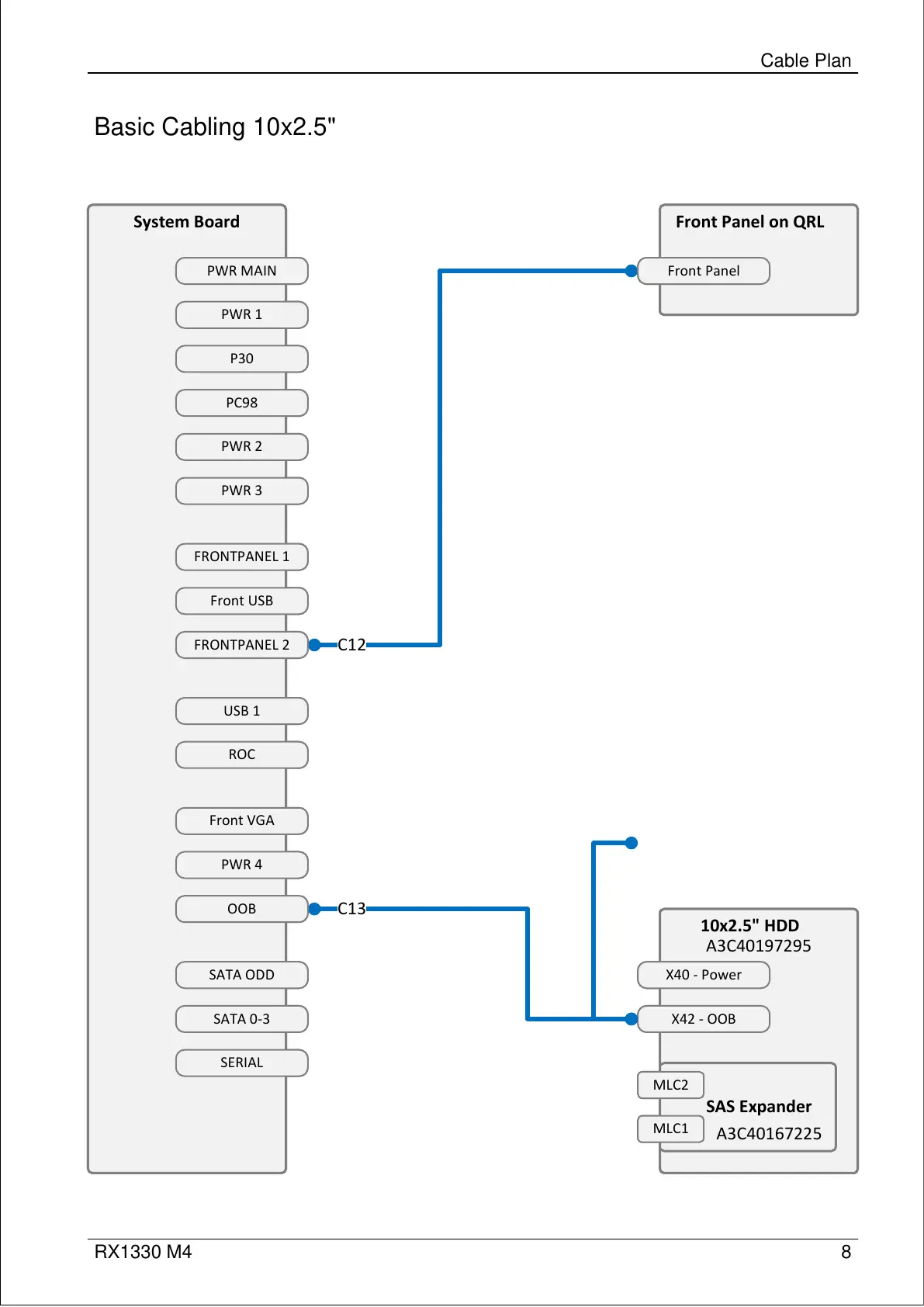

Basic Cabling 10x2.5"
Cable Plan
C12
Front Panel on QRL
Front Panel
Front Panel on QRL
Front Panel
10x2.5" HDD
SAS Expander
MLC2
MLC1
X40 - Power
A3C40197295
A3C40167225
X42 - OOB
10x2.5" HDD
SAS Expander
MLC2
MLC1
X40 - Power
A3C40197295
A3C40167225
X42 - OOB
C13
System Board
PWR MAIN
PWR 1
P30
PWR 2
PWR 3
FRONTPANEL 1
Front USB
FRONTPANEL 2
USB 1
Front VGA
PWR 4
OOB
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
System Board
PWR MAIN
PWR 1
P30
PWR 2
PWR 3
FRONTPANEL 1
Front USB
FRONTPANEL 2
USB 1
Front VGA
PWR 4
OOB
SATA ODD
SATA 0-3
SERIAL
PC98
ROC

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
