Hard disk drive (HDD) / solid state drive (SSD)
Removing the SAS backplane

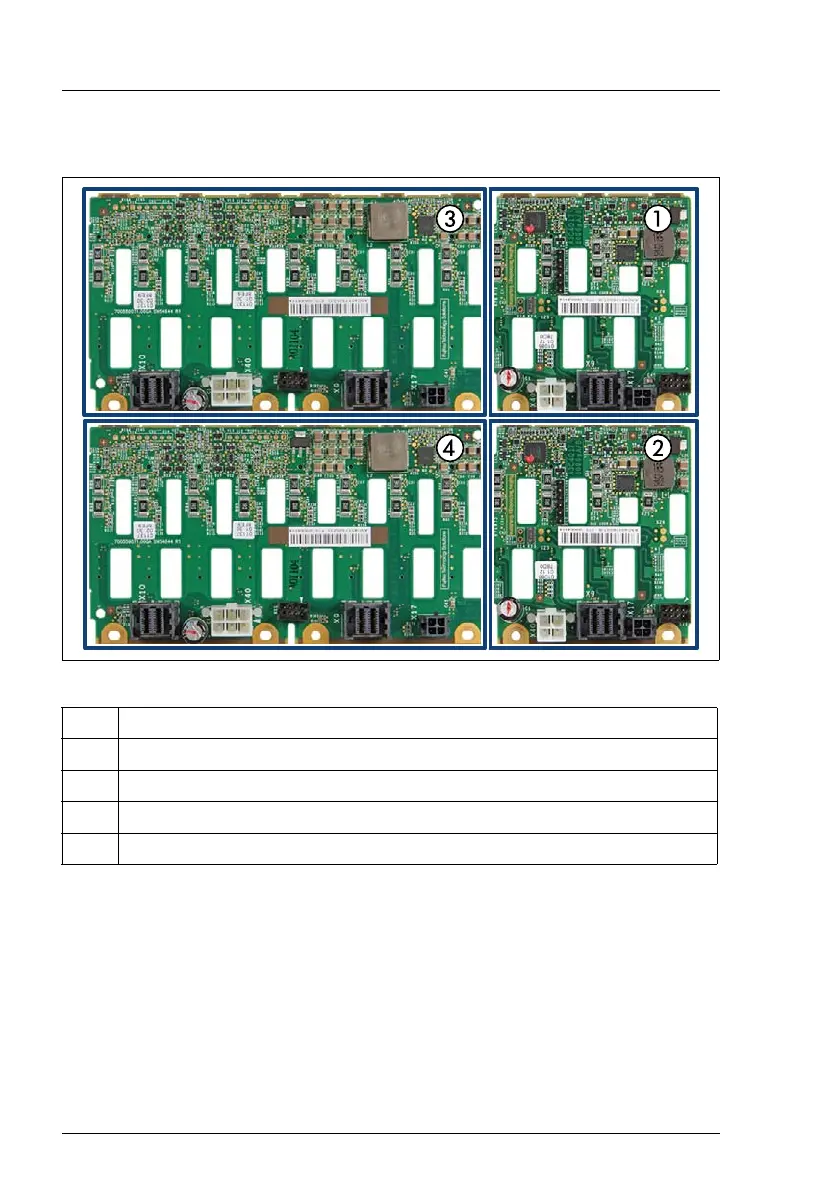

Figure 107: Numbering SAS backplanes
Ê Disconnect all cables from the corresponding SAS backplane.
Pos. Component
1 SAS backplane 1
2 SAS backplane 2
3 SAS backplane 3
4 SAS backplane 4
