Fujitsu PRIMERGY RX2560 M2 - Page 195

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 195
Hard disk drive (HDD) / solid state drive (SSD)

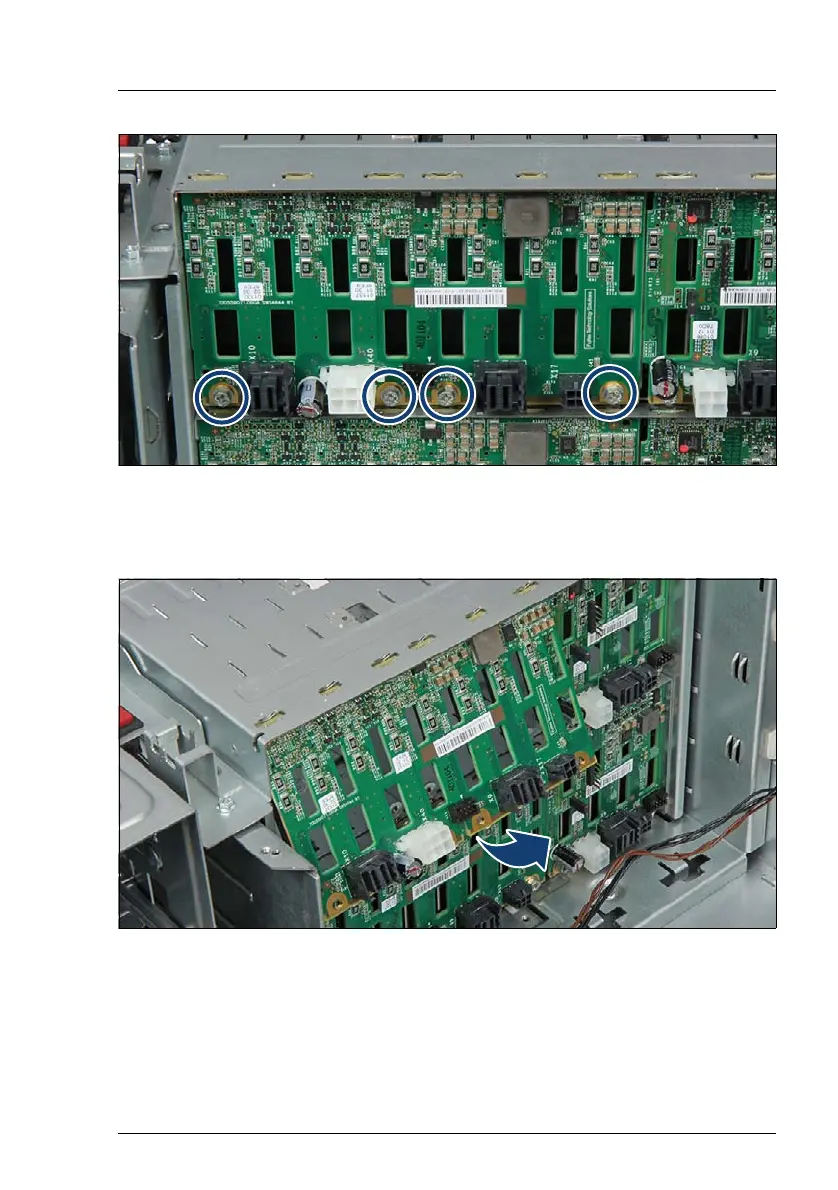

Figure 108: Removing a SAS backplane - example SAS backplane 3 (A)
Ê Remove the four (SAS backplane 3 and 4) or two screws (SAS backplane 1
and 2).
Figure 109: Removing a SAS backplane - example SAS backplane 3 (B)
Ê Take out the SAS backplane in a slight angle.
