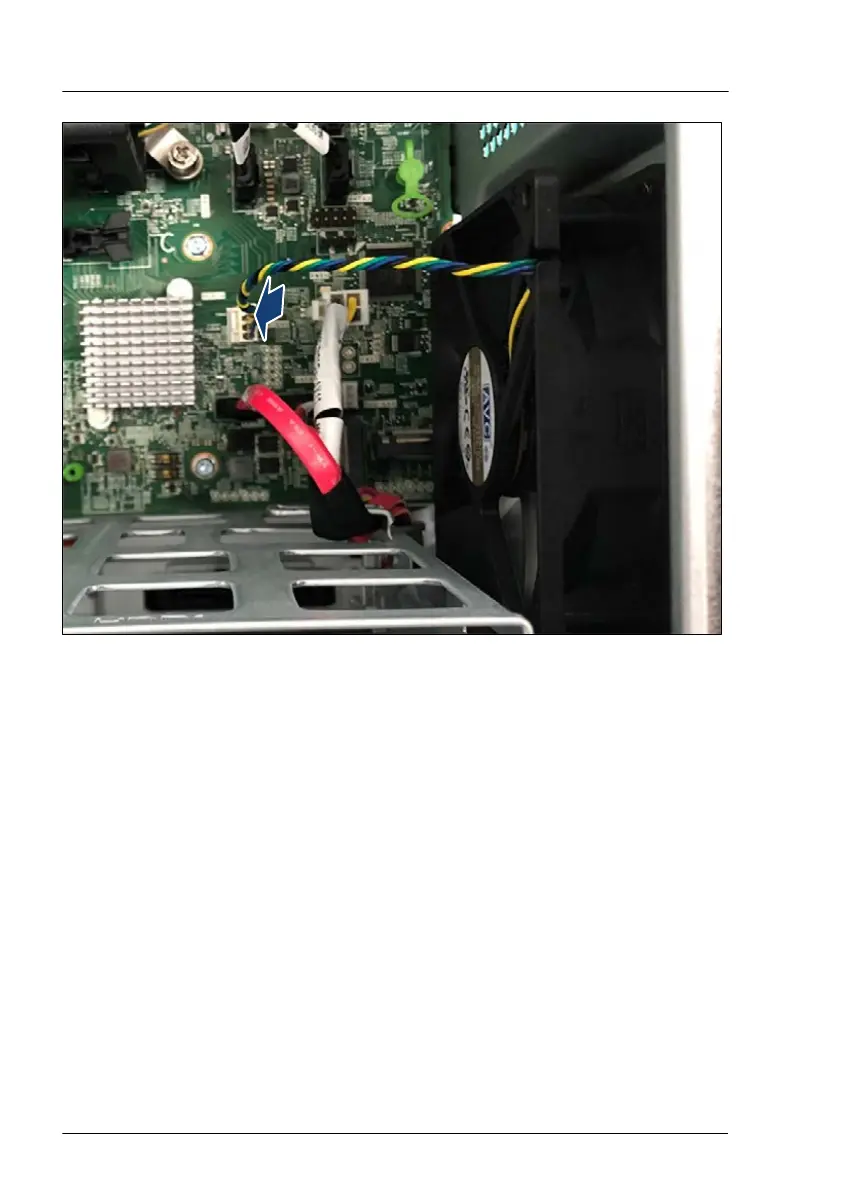

Figure 64: Connecting the front fan cable
▶
Connect the front fan cable to system board connector "Fan1 (SYS)".
Concluding steps
▶
"Reassembling" on page
50
.
▶
"Connecting the power cord" on page
56
.
▶
"Switching on the server" on page 57
.
▶
"Installing the bay cover" on page 58
.
▶
"Locking the server" on page 59
.
Fans
1
10
Upgrade and Maintenance Manual
TX1310 M5
109
111
Table of Contents
Version History
7
Table of Contents
7
Notational Conventions
15
Introduction
15
Concept and Target Groups of this Manual
15
Before You Start
17
Basic Information
17
Proceeding
17
Advanced Thermal Design (ATD)
17
Assignment of Unit Categories
18
Classification of Procedures
18
Installing Optional Components
18
Upgrade and Repair Units (URU)
19
Customer Replaceable Units (CRU)
19
Field Replaceable Units (FRU)
20
Average Task Duration
21
Tools You Need at Hand
22
Documentation Overview
22
About Availability of Manuals
22
List of Documents
23
Safety Instructions
25
Basic Safety Instructions
25
Introduction
25
Important Information
25
Before Starting up
26
Installation and Operation
26
Batteries
29
Working with Optical Disk Drives (Odds) and Media
29
Laser Information
31
Modules with Electrostatic-Sensitive Devices (ESD Modules)
31
Transporting the Server
33
Installing the Server in the Rack
34
Other Important Information
34
CE Conformity
35
FCC Class a Compliance Statement
35
Environmental Protection
36
Basic Hardware Procedures
39
Using Diagnostic Information
39
Proceeding
39
Unlocking the Server
39
Removing the Bay Cover
40
Shutting down the Server
41
Disconnecting the Power Cord
42
Getting Access to the Component
43
Safety Notes
43
Removing the Front Cover
44
Removing the Side Cover
44
Removing the Top HDD Cage
46
Removing the System Board Tray
48
Reassembling
50
Safety Notes
50
Inserting in the System Board Tray
50
Installing the Top HDD Cage
52
Installing the Front Cover
54
Installing the Side Cover
56
Connecting the Power Cord
56
Switching on the Server
57
Installing the Bay Cover
58
Locking the Server
59
Basic Software Procedures
61
Starting the Maintenance Task
61
Suspending Bitlocker Functionality
61
Removing Backup and Optical Disk Media
63
Verifying and Configuring the Backup Software Solution
63
Completing the Maintenance Task
63
Updating or Recovering the BIOS
63
Reconfiguring the Backup Software Solution
64
Verifying the System Time Settings
65
Enabling Replaced Components in the BIOS
65
Viewing the System Event Log (SEL)
66
Updating the NIC Configuration File in a Linux/Vmware os
67
Resuming Bitlocker Functionality
68
Performing a RAID Array Rebuild
69
Looking up for MAC/WWN Addresses
70
Using the Chassis ID Prom Tool
71
Configuring LAN Teaming
71
Basic Information
73
Replacing the Standard PSU
73
Safety Notes
73
Power Supply Unit (PSU)
73
Hard Disk Drives (HDD)
81
Safety Notes
81
Basic Information
82
Inch HDD/SSD Configurations
83
Installing a 2.5-Inch HDD Module
83
Removing a 2.5-Inch HDD Module
86
Replacing a 2.5-Inch HDD Module
88
Inch HDD Configurations
89
Installing a 3.5-Inch HDD Module
89
Removing a 3.5-Inch HDD Module
92
Replacing a 3.5-Inch HDD Module
95
Basic Information
97
Safety Notes
97
Fans
97
Replacing the Rear Fan
98
Replacing the Front Fan
105
Expansion Cards
111
Safety Notes
111
Basic Information
112
Handling Slot Brackets
113
Installing Slot Brackets
113
Removing Slot Brackets
116
Installing an Expansion Card
116
Removing an Expansion Card
119
Replacing an Expansion Card
122
Main Memory
125
Safety Notes
125
Basic Informations
126
Installing Memory Modules
128
Removing Memory Modules
129
Replacing Memory Modules
131
Processor (CPU)
133
Safety Notes
133
Basic Information
134
Upgrading or Replacing the CPU
135
Replacing the Heat Sink
148
Handling the Protectice Cover
150
Accessible Drives
157
Safety Notes
157
Basic Information
157
Optical Disk Drive (ODD)
158
Installing the ODD
158
Removing the ODD
162
Replacing the ODD
164
RDX Drive
165
Installing the RDX Backup Drive
165
Removing the RDX Backup Drive
169
Replacing the RDX Backup Drive
171
Front Panel and Front USB
173
Serial Interface
175
Safety Notes
175
Installing the Serial Interface
175
Removing the Serial Interface
177
Replacing the Serial Interface
179
System Board and Components
181
Safety Notes
181
Basic Information
181
CMOS Battery
182
Replacing the CMOS Battery
182
Trusted Platform Module (TPM)
184
TPM Kit
184
Installing the TPM
185
Removing the TPM
188
Replacing the TPM
192
M.2 Ssd
194
Slots and Bolts for M.2 Ssds
194
Installing an M.2 SSD
196
Removing an M.2 SSD
201
Replacing an M.2 SSD
204
System Board
205
Replacing the System Board
205
Replacing the System Cable (Accessible Drives / Top HDD Cage)
217
Cables
217
Basic Information
217
Safety Notes
217
Replacing the HDD Cable (Bottom HDD Cage)
220
Mechanical Overview
225
Server Front
225
Server Rear
226
Server Interior
227
Connectors and Indicators
228
Connectors on the System Board
228
Indicators on the Front Panel
230
Connectors on the Server Front
230
Server Front
230
Indicators on the Drives
231
Server Rear
233
Connectors on the I/O Panel
233
Indicators on the I/O Panel
234
Onboard Settings
235
Minimum Startup Configuration
236
Supplied Documents
239
Reference Manual - English
241
List of Used Cables
242
Sysboardconn
243
Cablingbasicpsu
244
Cablingfan
245
DATA HDD W/O BMC
246
PWR HDD W/O BMC
247
DATA HDD W/Bmc
248
PWR HDD W/Bmc
249
FRONT IO USB W/Bmc
250
DATA Cp500I W/O BMC
251
DATA Cp500I W/Bmc
252
DATA CP2100 W/O BMC
253
DATA CP2100 W/Bmc
254
DATA COM Port
255
