Example network adapter

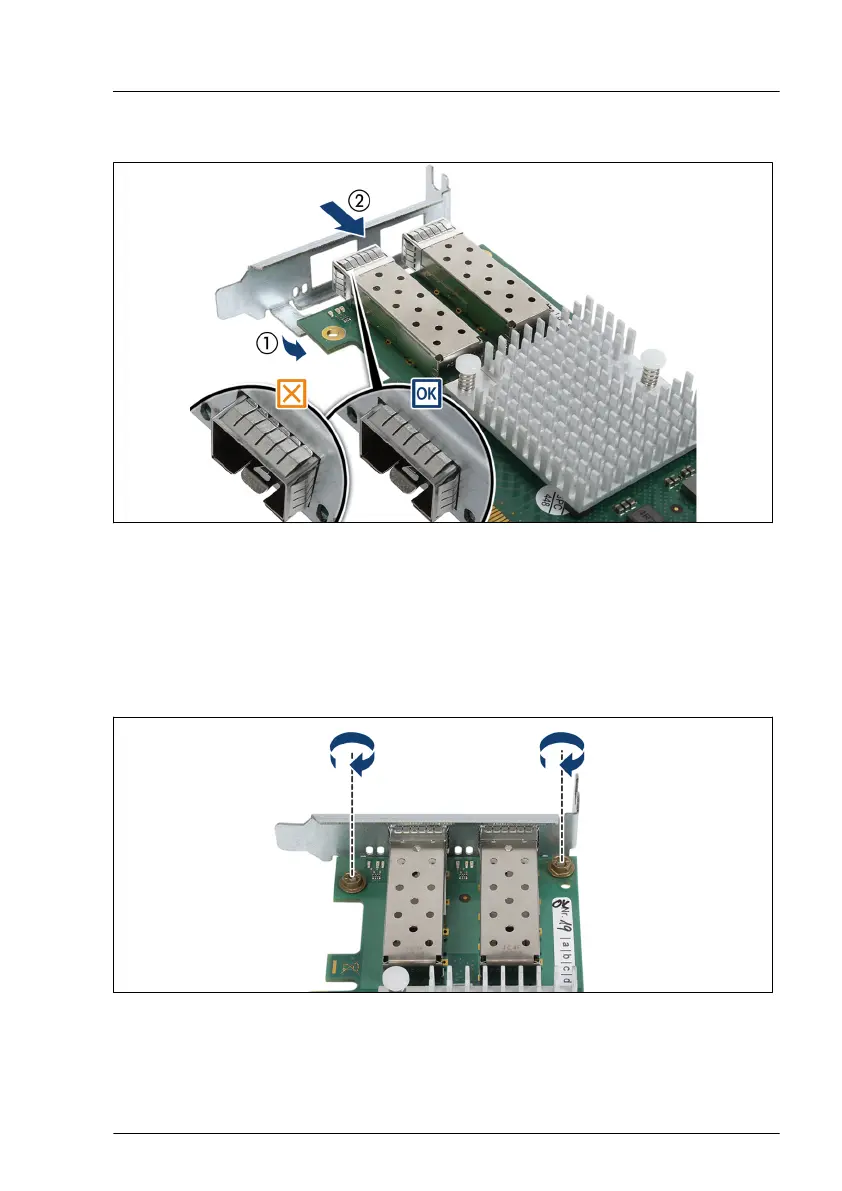

Figure 67: Placing the slot bracket
▶
Place the controller on the slot bracket (1).
▶
Carefully shift the slot bracket towards the controller (2).
▶
Ensure that the ESD springs properly engage with the slot bracket as shown
(see circles).
Figure 68: Fastening the slot bracket - D2755
▶
Fasten the slot bracket to the controller with two screws.
Expansion cards
TX1310 M5 Upgrade and Maintenance Manual 115
