Removing the heat sink

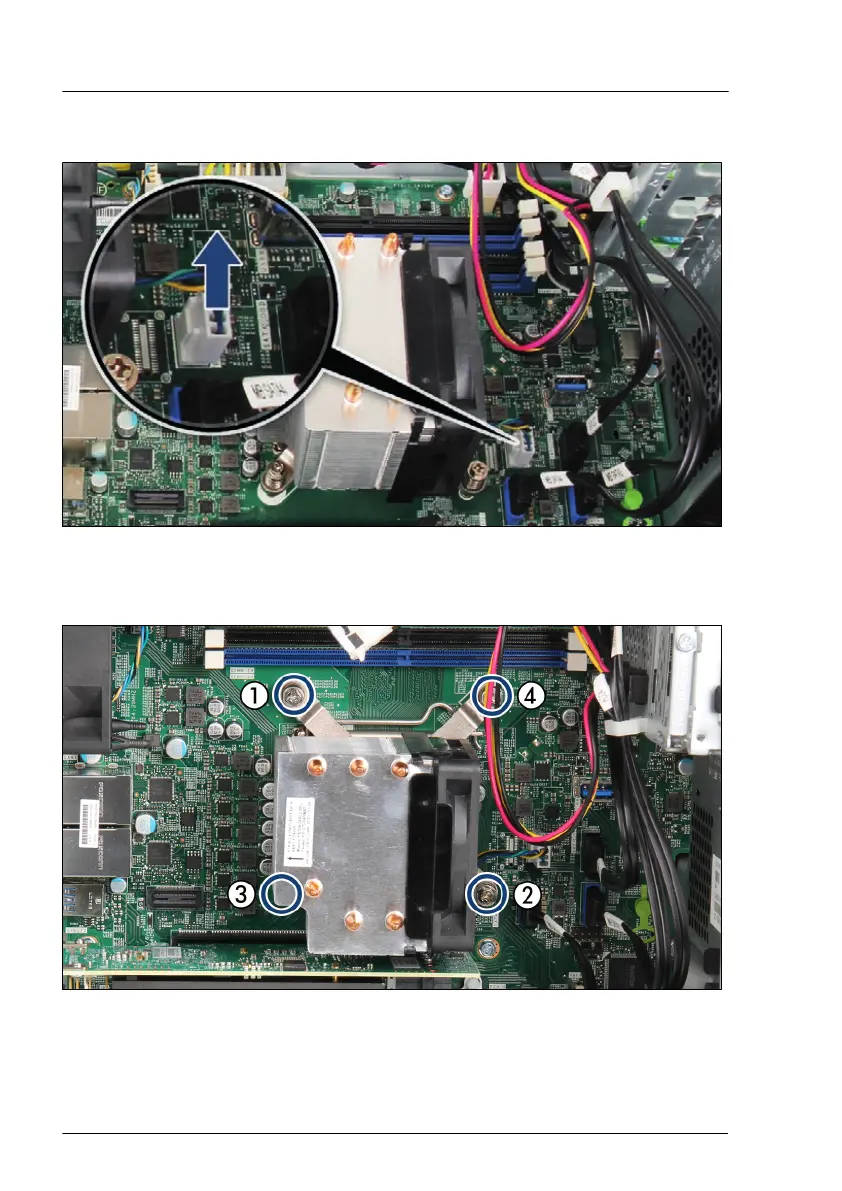

Figure 79: Removing the heat sink (A)
▶
Disconnect the CPU fan cable from system board connector "Fan (CPU)"
Figure 80: Removing the heat sink (B)
▶
Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
Processor (CPU)
136 Upgrade and Maintenance Manual TX1310 M5
