Latch the socket lever under the load plate tab.
Applying thermal paste to the CPU surface
For Japan, the service engineer must follow the instruction provided
separately.
If the CPU upgrade or replacement kit contains a new heat sink, a thin
layer of thermal compound has already been pre-applied to its lower
surface. In this case, it isn’t necessary to apply thermal paste to the
CPU surface.

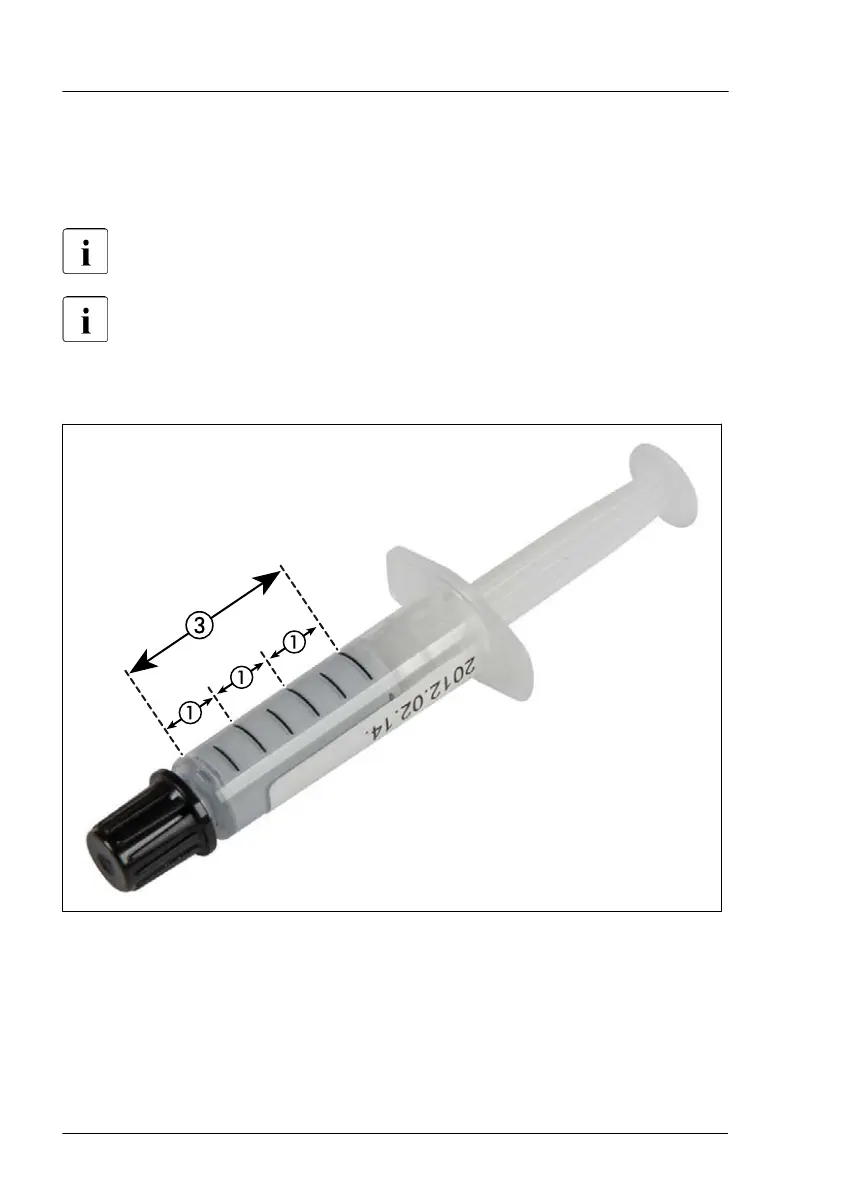

Figure 89: Thermal paste syringe
One thermal compound syringe (FSP:P304000004) contains thermal paste for
three CPUs.
In order to determine the correct amount of thermal paste (equal to 1.0 gram),
divide the grey area of the syringe up into three equal segments.
Processor (CPU)
144 Upgrade and Maintenance Manual TX1310 M5
