Installing the heat sink

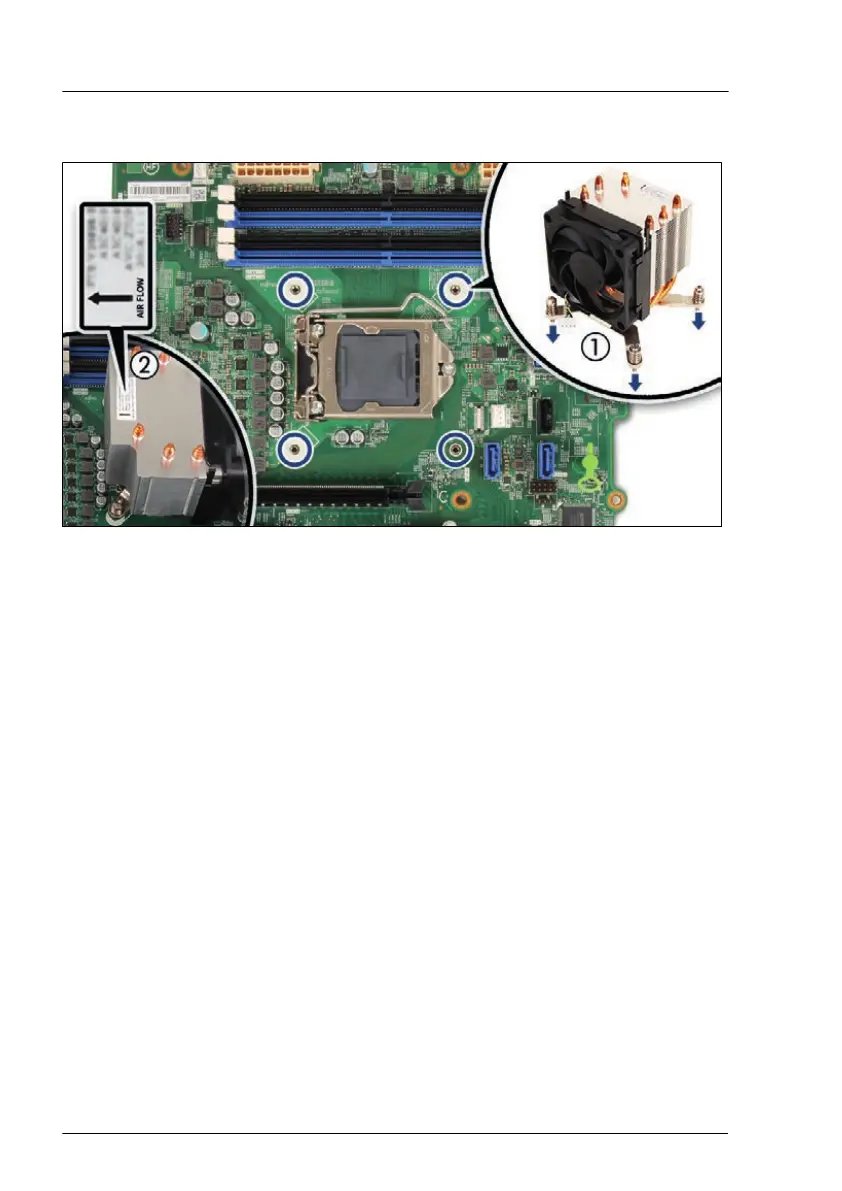

Figure 91: Installing the heat sink (A)
▶
Carefully seat the heat sink on the four threaded holes as shown (1).
▶
Ensure that the screws on the heat sink are properly seated on the threaded
holes (see circles).
▶
Ensure that the heat sink cooling fins match the direction of the airflow
(2, see close-up).
