Fujitsu PRIMERGY TX1310 M5

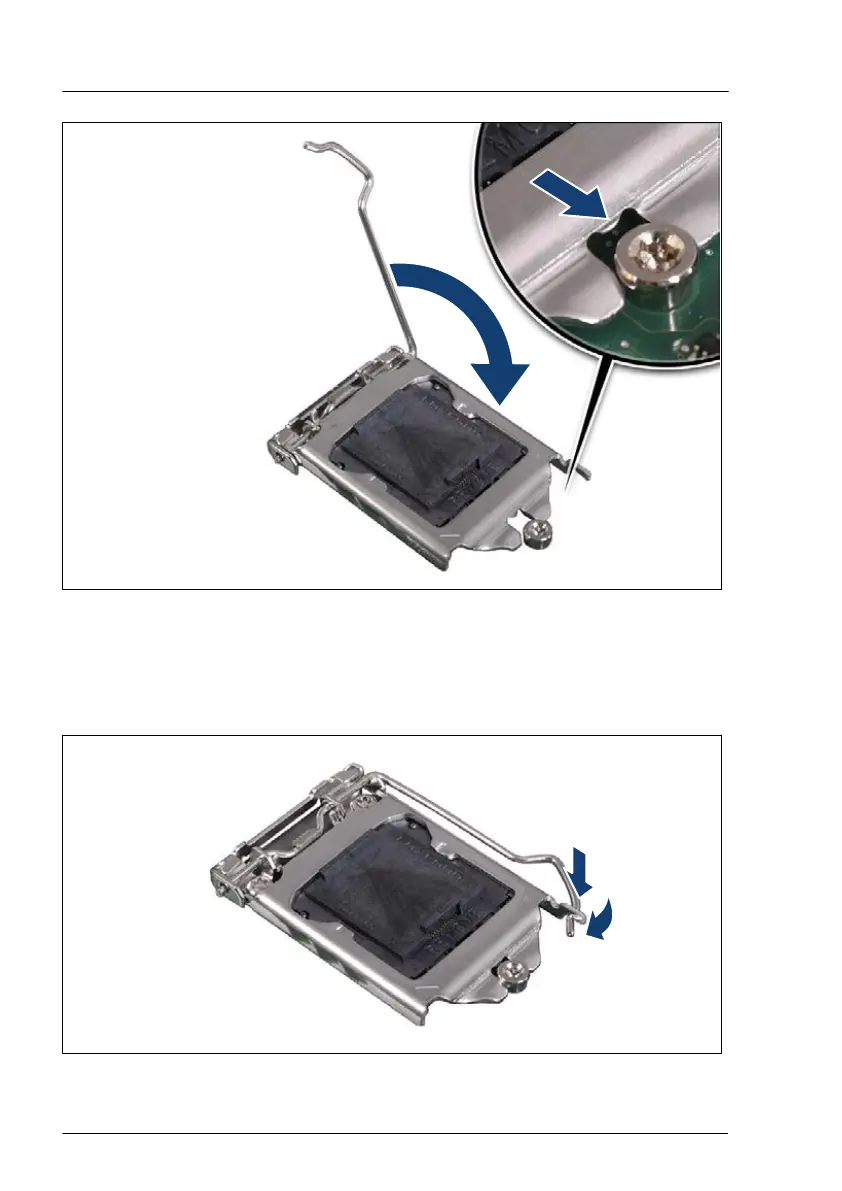

Figure 96: Closing the load plate (B)
▶
Lower the socket lever while making sure that the front edge of the load
plate slides under the shoulder screw cap (see close-up) as the lever is
lowered.
Figure 97: Latching the socket lever
Processor (CPU)
152 Upgrade and Maintenance Manual TX1310 M5
