Removing the ODD

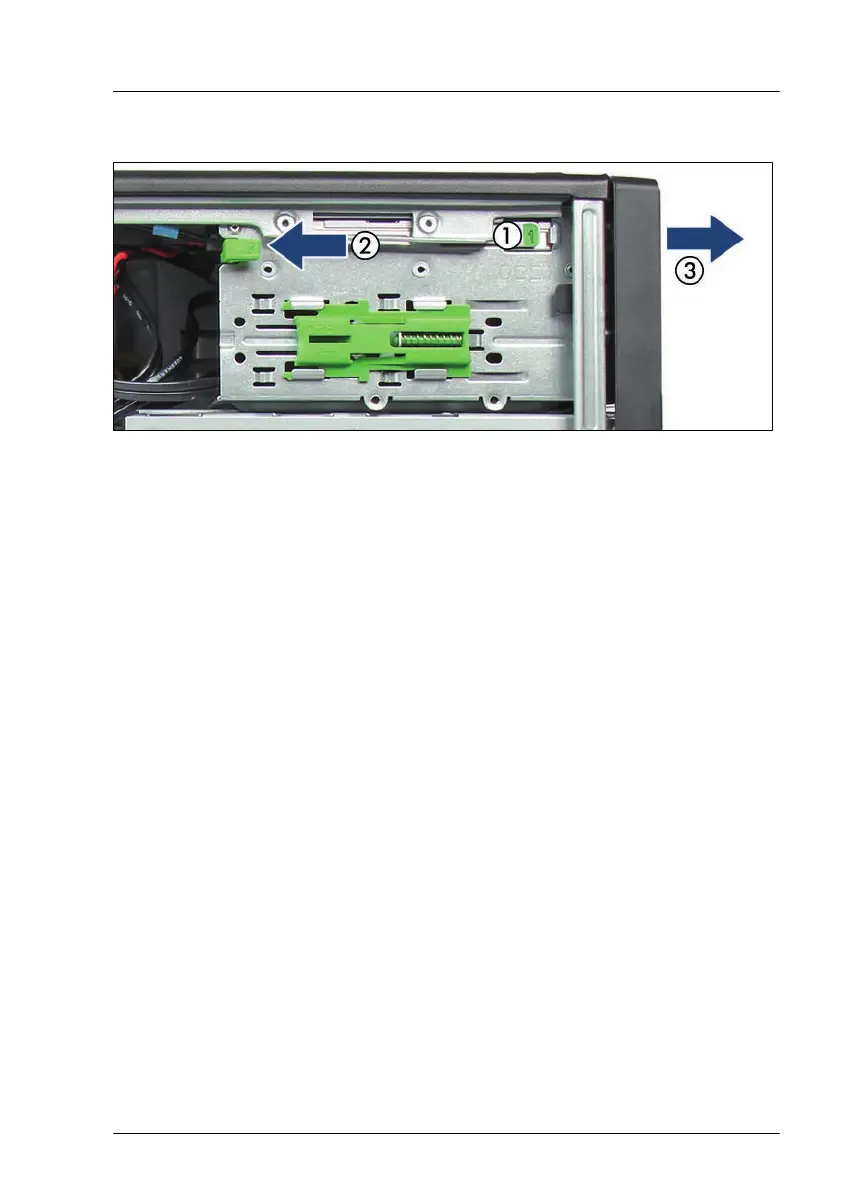

Figure 106: Removing the ODD
▶
To disengage the ODD, press down on the latch marked "1" (1) while pulling
the locking handle in the drive cage to the left (2).
▶
Remove the ODD out of its bay (3).
Concluding steps
▶
Remove the fixation plates from the removed accessible drives.
▶
Secure the fixation plates in the chassis.
▶
"Reassembling" on page
50.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
▶
"Reconfiguring the backup software solution" on page 64.
▶
"Resuming BitLocker functionality" on page 68.
