Removing the HDD cage door
Figure 1

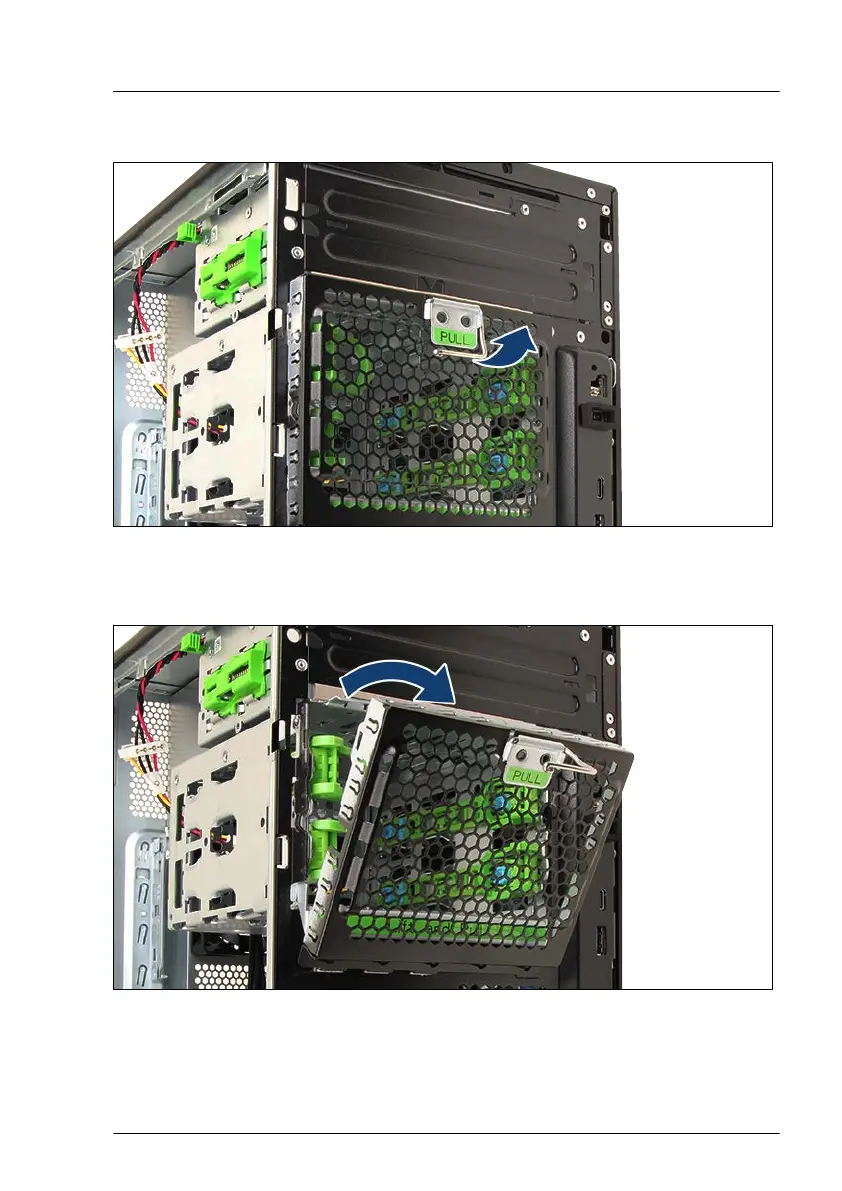

1: Pulling up the lever
▶
Pull up the lever of the HDD cage door (see arrow).
Figure 12: Folding down the HDD cage door
Basic hardware procedures
TX1310 M5
Upgrade and Maintenance Manual
47
46
48
