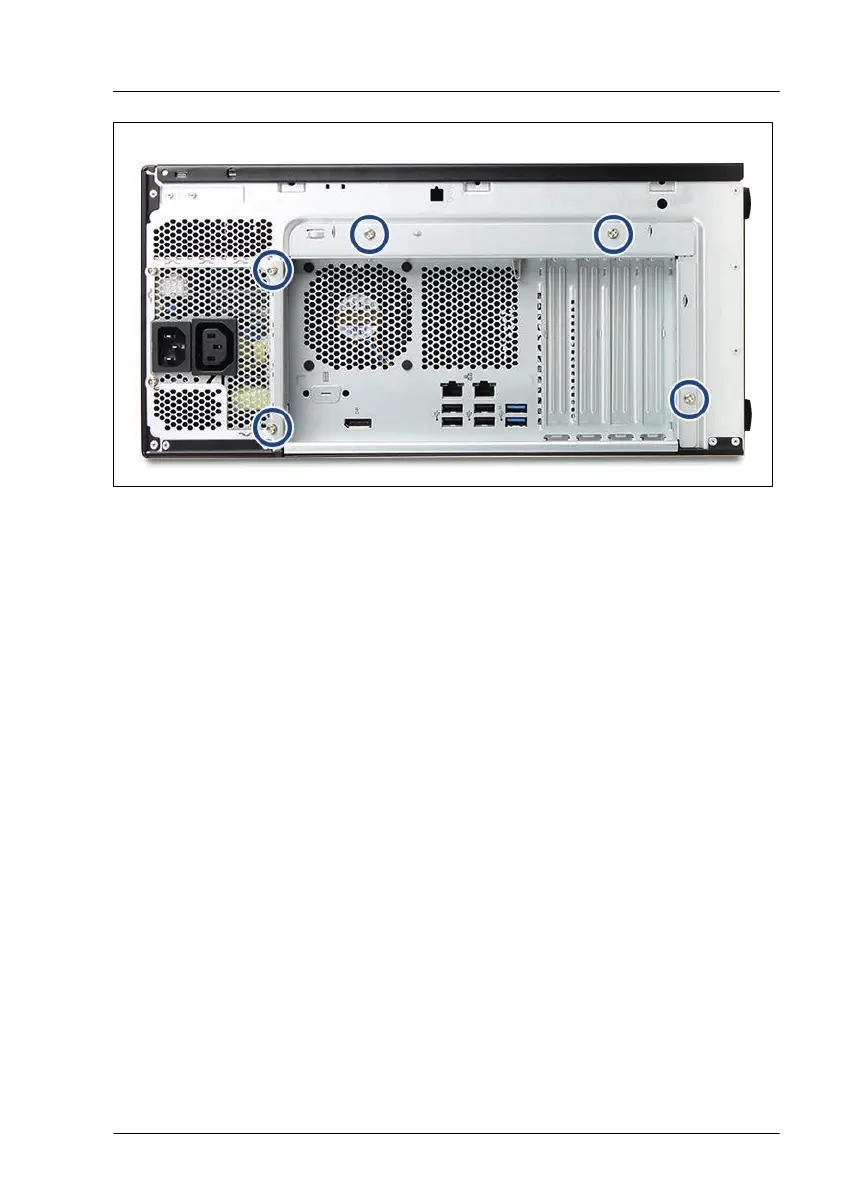

Figure 17: System board tray - Location of screws
▶
Fasten the system board tray to the chassis with five screws (see circles).
▶
Connect all cables on their place at the system board.
Basic hardware procedures
TX1310 M5 Upgrade and Maintenance Manual 51
