Installing the HDD cage door

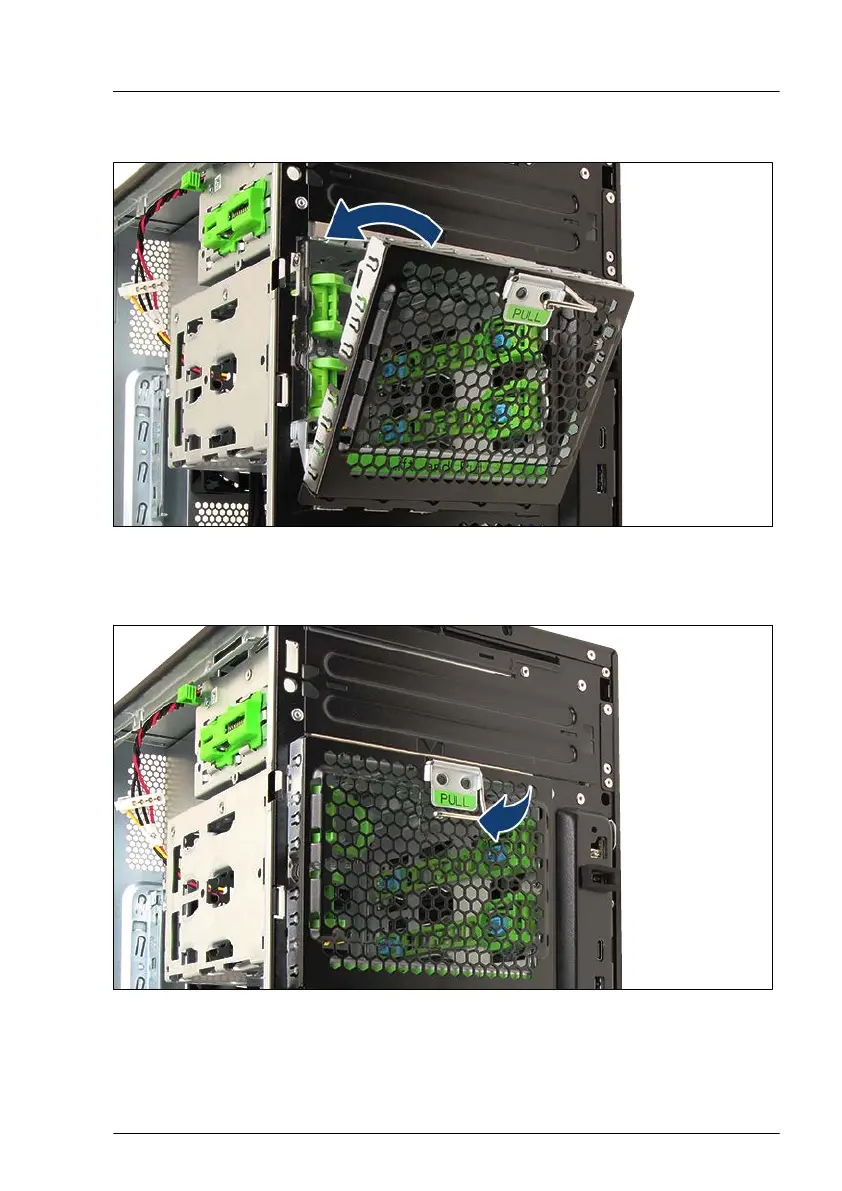

Figure 19: Installing the HDD cage door
▶
Install the HDD cage door and fold it up.
Figure 20: Folding down the lever
▶
Fold down the lever of the HDD cage door
.
Basic hardware procedures
TX1310 M5
Upgrade and Maintenance Manual
53
52
54
