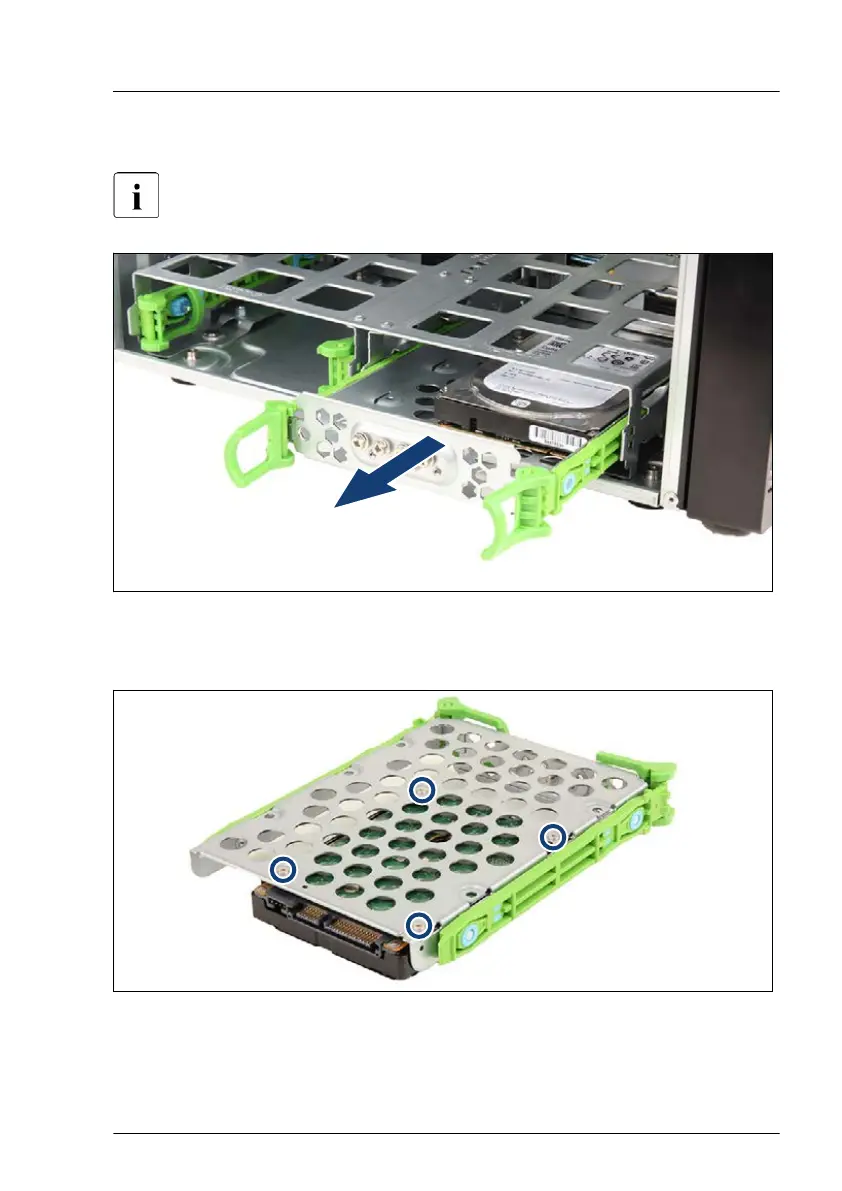

Removing a 2.5-inch HDD
HDDs on the bottom and HDDs on the front can be removed in the
same way.
Figure 43: Removing a 2.5-inch HDD
▶
Pull the HDD carrier completely out of its drive bay
.
Figure 44: Detaching the 2.5-inch HDD from the 3.5-inch HDD carrier
▶
Loosen the 4 screws on the 3.5-inch HDD carrier (see circles) and separate
the HDD from the carrier.
Hard disk drives (HDD)
TX1310 M5 Upgrade and Maintenance Manual 87
