Removing Easyrail out of the upper HDD bay

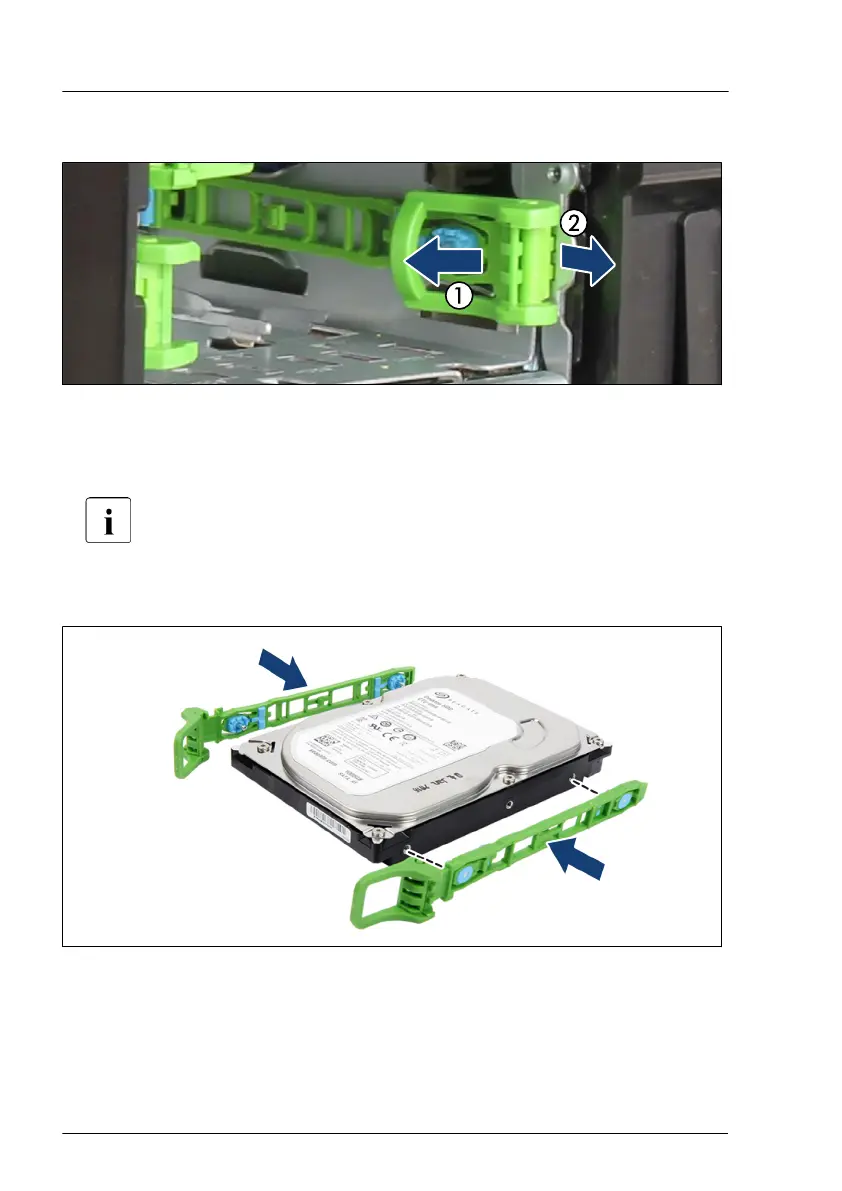

Figure 45: Removing the Easyrails out of the bay
▶
Press in the green handle on the Easyrail (1) and pull the rail out of the
desired 3.5-inch HDD drive bay (2).
Easyrails can be different (see figures).
Installing a 3.5-inch HDD
Figure 46: Aligning the Easyrails
▶
Align the two pins on the Easyrails with the screw holes on the HDD.
Hard disk drives (HDD)
90 Upgrade and Maintenance Manual TX1310 M5
