Before You Start
EN

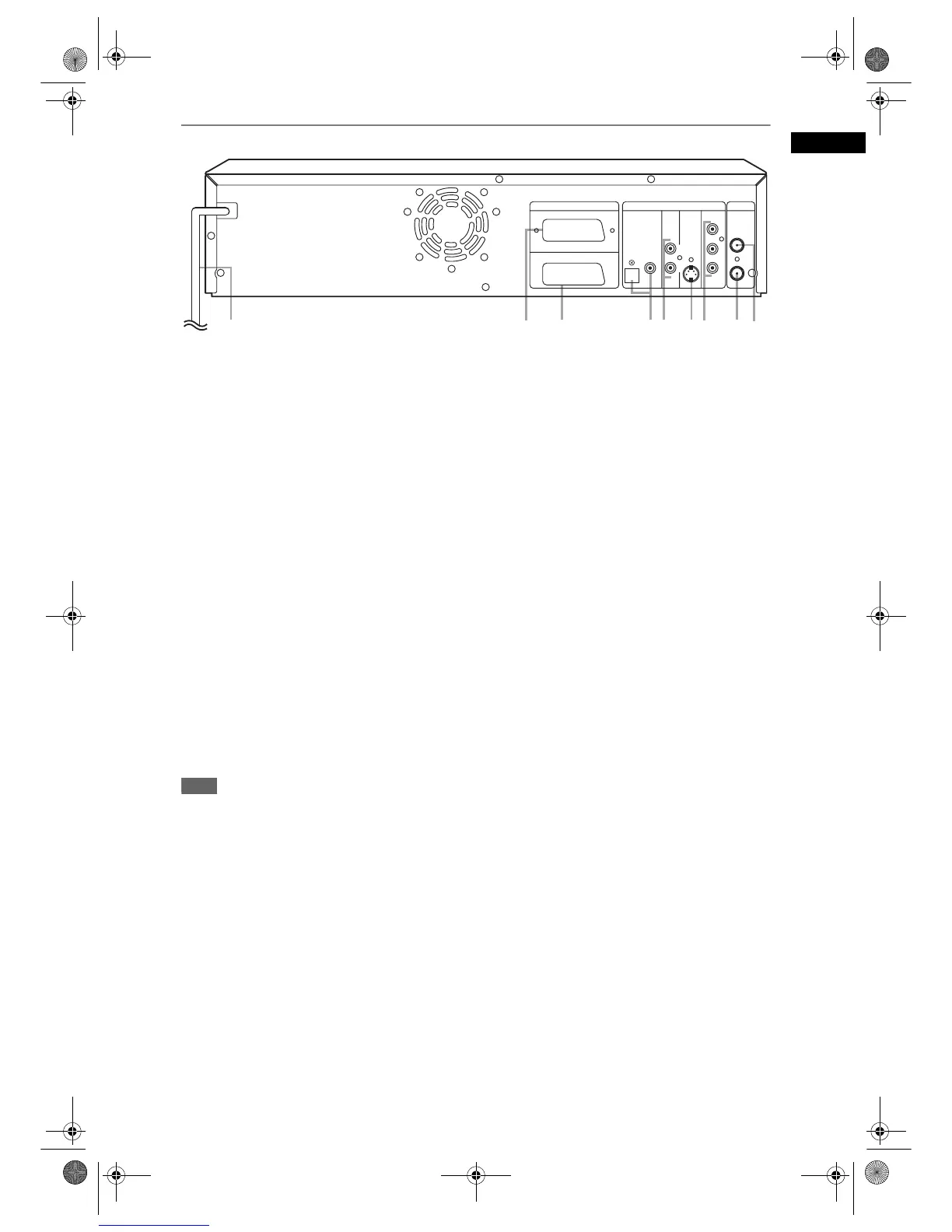

Rear Panel
1 Mains cable
• Connect to a standard AC outlet.
2 AV2 (DECODER) jack (DVD / VCR)
• Connect to VCR, camcorder, or other
Audio-Video equipment. Use a commercially
available Scart cable.
3 AV1 (TV) jack (DVD / VCR)
• Connect to the Scart jack on your TV. Use a
commercially available Scart cable.
4 DIGITAL AUDIO OUT (OPTICAL,
COAXIAL) jacks (DVD)
• Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder or MPEG
decoder. Use a commercially available Optical
or Coaxial cable.
5 AUDIO OUT jacks (DVD)
• Connect to the audio input jacks on your TV.
Use a commercially available Audio cable.
6 S-VIDEO OUT jack (DVD)
• Connect to the S-Video input jack on your TV.
Use a commercially available S-Video cable.
7 COMPONENT VIDEO OUT jacks (DVD)
• Connect to the component video input jacks on
your TV.
• Use a commercially available Component Video
cable.
8 ANTENNA OUT (DVD / VCR)
• Connect to the Aerial jack on your TV, cable box
or direct broadcast system. Use the supplied RF
cable.
9 ANTENNA IN (DVD / VCR)
• Connect to an antenna or cable.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.
• This unit does not have an RF modulator.
923 4 5 8671
DVD/VCR DVD
IN
OUT
Y
P
B
/CB
PR
/CR
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
OPTICAL
