17
Connections
EN
Note for a TV with no S-Video input jack or Scart
jack:
• This unit has no RF modulator, so this type of TV
cannot be used.
• Only component connection is compatible with the
Progressive Scan.

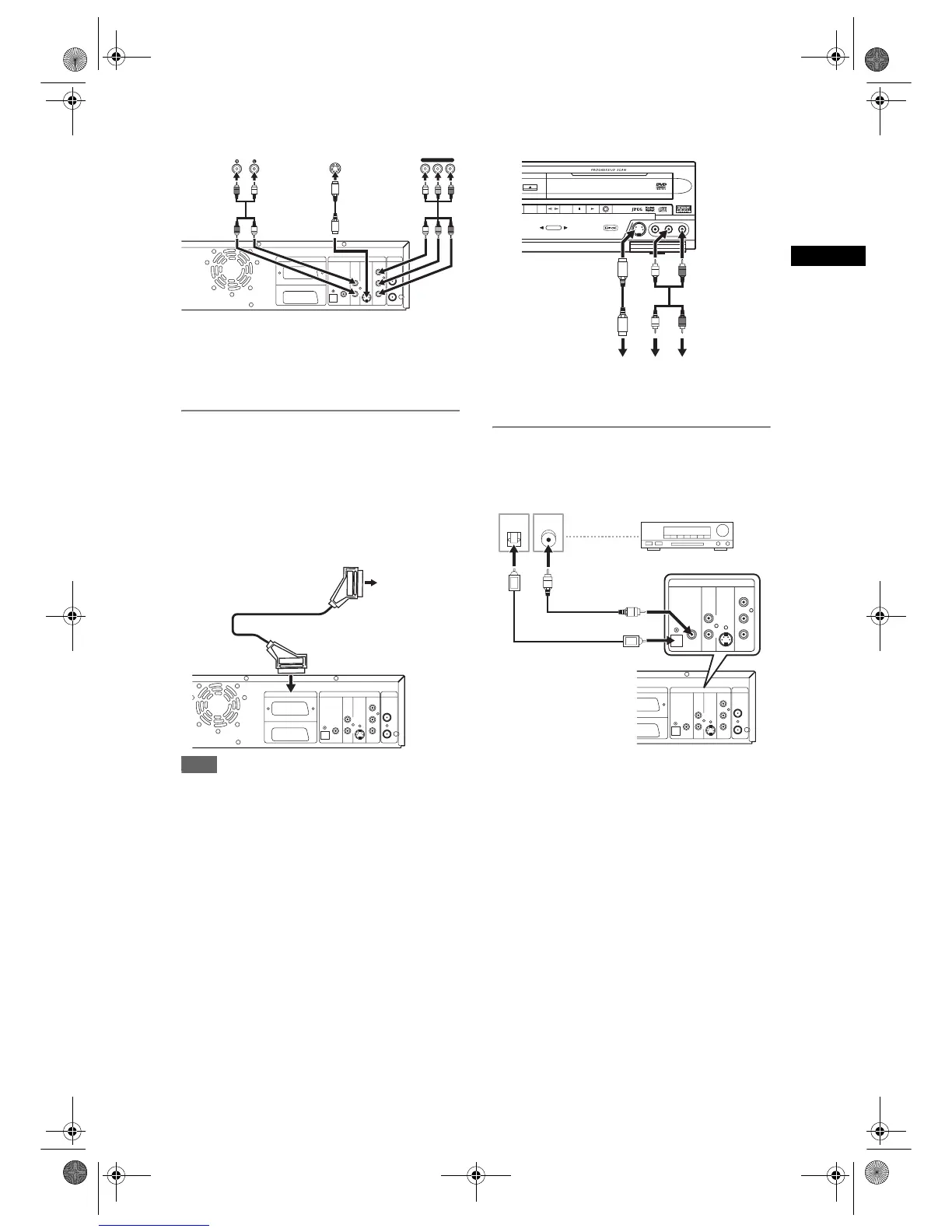

Connecting to External Equipment
This unit has three input terminals, AV1 or AV2 on the
rear panel and AV3 on the front panel. Be sure that all
the units are off before making connections.
Recording from a DVD player, VCR, Satellite
Box or other Audio-Video equipment with a
Scart output jack (AV2)
Note
• When you record a TV programme from a Satellite
Box, you must connect a Scart cable to
AV2(DECODER). (See page 33.)
• When AV2 is connected, the signal from the AV2 will
be output automatically. If you want to monitor the
signal from other input, you must press [DISPLAY]
first. Then, select the desired input to monitor with
[INPUT SELECT].
• If you connect a Satellite or DVB-T Receiver at AV2,
the channel must be tuned at the Receiver, not with
this device.
Recording from a camcorder or other
Audio-Video equipment with no Scart output
jack (AV3)
If no S-Video input jack is available, connect to
VIDEO input jack on the front panel using an RCA
Video cable.
Change the setup when using S-VIDEO input jack.
(See page 34.)
When connecting an external device of monaural
output to this unit,use AUDIO L jack of AV3.
Digital Audio for Better Sound Quality
(Only for DVD)
The connections illustrated above are
optional for better sound.
1 For clear digital sound quality, use
the DIGITAL AUDIO OUT (OPTICAL
or COAXIAL) jacks to connect your
digital audio equipment.
If the audio format of the digital output does not
match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or
no sound at all.
DVD/VCR DVD
IN
OUT
Y
P
B
/CB
PR
/CR
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO
DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
OPTICAL
YPB/CB PR/CR
Component
Video IN
S-VIDEO INAUDIO IN
Audio
cable
(not
supplied)
S-Video
cable
(not
supplied)
Component
Video Cable
(not
supplied)
DVD/VCR DVD
IN
OUT
Y
P
B
/CB
PR
/CR
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO
DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
OPTICAL
AV output jack
(Scart)
Scart cable (not supplied)
AV2 (DECODER)
DUBBING SELECT STOP
OPEN/CLOSE
PLAY RECORD
VCR DVD
SELECT
S-VIDEO VIDEO
L(MONO)-AUDIO- R
AV3 (Front)
S-Video cable
(not supplied)
Audio cable
(not supplied)
S-VIDEO
OUT
AUDIO
OUT
To Next Page
