1. SYSTEM INTRODUCTION
1-6

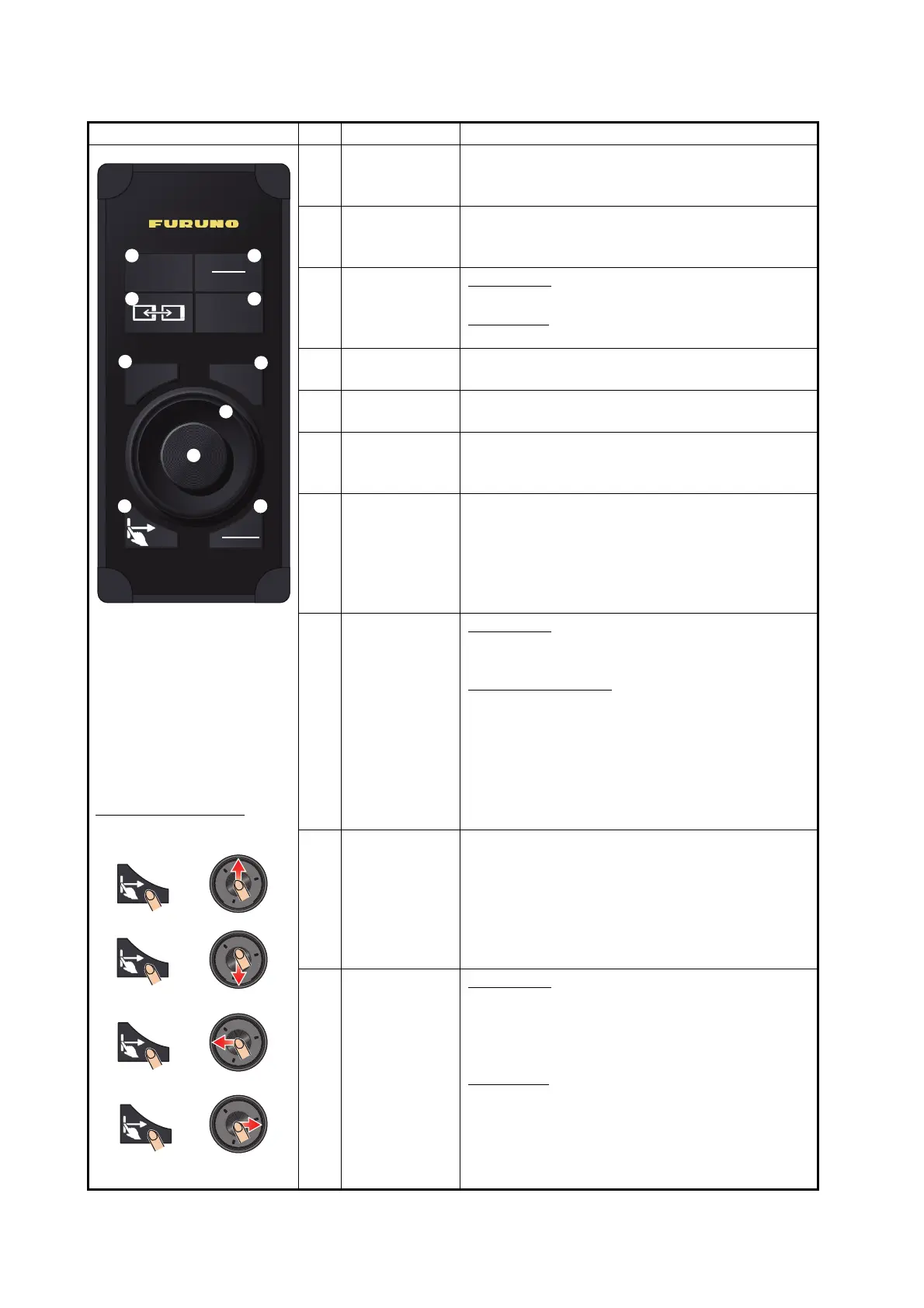

1.2.2 Remote Control Unit MCU-004
No. Key Function
Edge key operations
:
1 STBY•AUTO
key
Switches the steering mode of the FURUNO
NAVpilot series Autopilot between the STBY
and AUTO modes.
2 HOME/BRILL
key
• Short press: Opens the home screen.
• Long press: Opens the Brilliance/Power win-
dow.
3 CONTROL
key
Short press
: Switches the active screen on the
current display unit.
Long press
: Switches control between active
display units on the same network.
4 FUNC key Activates the function set at [Function Gesture]
in the [General] menu.
5 CURS•SCRL
key
Switches the function of the joystick between
the Cursor and Scroll modes.
6 CENTER key • Returns own ship to center of screen (Plotter/
Weather/Radar display).
• Cancels the echo history (Fish finder display).
7 Rotary knob • Selects an item from the menu and dialog
box.
• Zooms in (+) and out (-).
• Raises (+) and lowers (-) the brilliance on the
Brilliance/Power window.
• Controls the slider bar.
8 Joystick Short press
: Works same as tap gesture.
• Opens the pop-up menu.
• Activates the item selected by the cursor.
Operate the joystick
:
Cursor mode operation:
• Moves the cursor.
Scroll mode operation:
• Pans the display (Plotter/Weather/Radar dis-
play).
• Shifts the range and scrolls back the picture
(Fish finder display).
9 EDGE key Press the EDGE key and operate the Joystick to
activate the Edge Swipe function.
• EDGE key and upward swipe: [Layers] menu
• EDGE key and downward swipe: Quick page
• EDGE key and leftward swipe: slide-out
menu
• EDGE key and rightward swipe: Data area
10 CANCEL/
MOB key
Short press
:
• Closes the menu or dialog box.
• Stops the aural alarm.
• Ends the tool mode (End Route, End Move,
etc.).
Long press
:
• Enters the MOB mark (at the own ship’s posi-
tion).
7
8
HOME
BRILL
STBY
•
AUTO
STBY
•
AUTO
FUNC
1 2
43
CURS
•
SCRL
CENTER
5
6
9
CANCEL
MOB
10
- Layers menu
Push
- Quick page
Push
- Slide-out menu
Push
- Data area
Push
