2. Software Configuration
Disconnect the Remote Alarm Panel until the software configuration is completed,
otherwise an alarm (grabber failure or no radar video) sounds.
Procedure:
1. In the Maintenance Viewer, log in to Serviceman.
2. Download the configuration data from the VDR into the Maintenance Viewer.
3. Set each tab. (Refer from section 2.2 for further explanation).
4. After each tab has been set up, save the data to the VDR.
5. Lastly, click the write button to backup the set data to the DRU, Backup HDD and the CF.
2.1 Preparing the software setup
To configure VR-3000/VR-3000S software with the VDR Maintenance Viewer, do the
following:
1. Make sure that the PC and DRU are connected securely to the DCU.
2. Turn on the VDR and wait about three minutes.
3. Download “equip.xml” from the VDR to the PC using the following steps:
1. Open Internet Explorer on the PC.
2. Enter the URL ftp://10.0.0.100/pub/ to access the VDR from the PC.
3. Copy the file “equip.xml” and paste it onto the PC desktop.
4. Start the VDR Maintenance Viewer.
5. Enter the IP address10.0.0.100 in the Maintenance Login dialog box.
6. Checkmark “Serviceman”, enter the password and click the OK button.
Note: Do not release the password to unauthorized personnel.

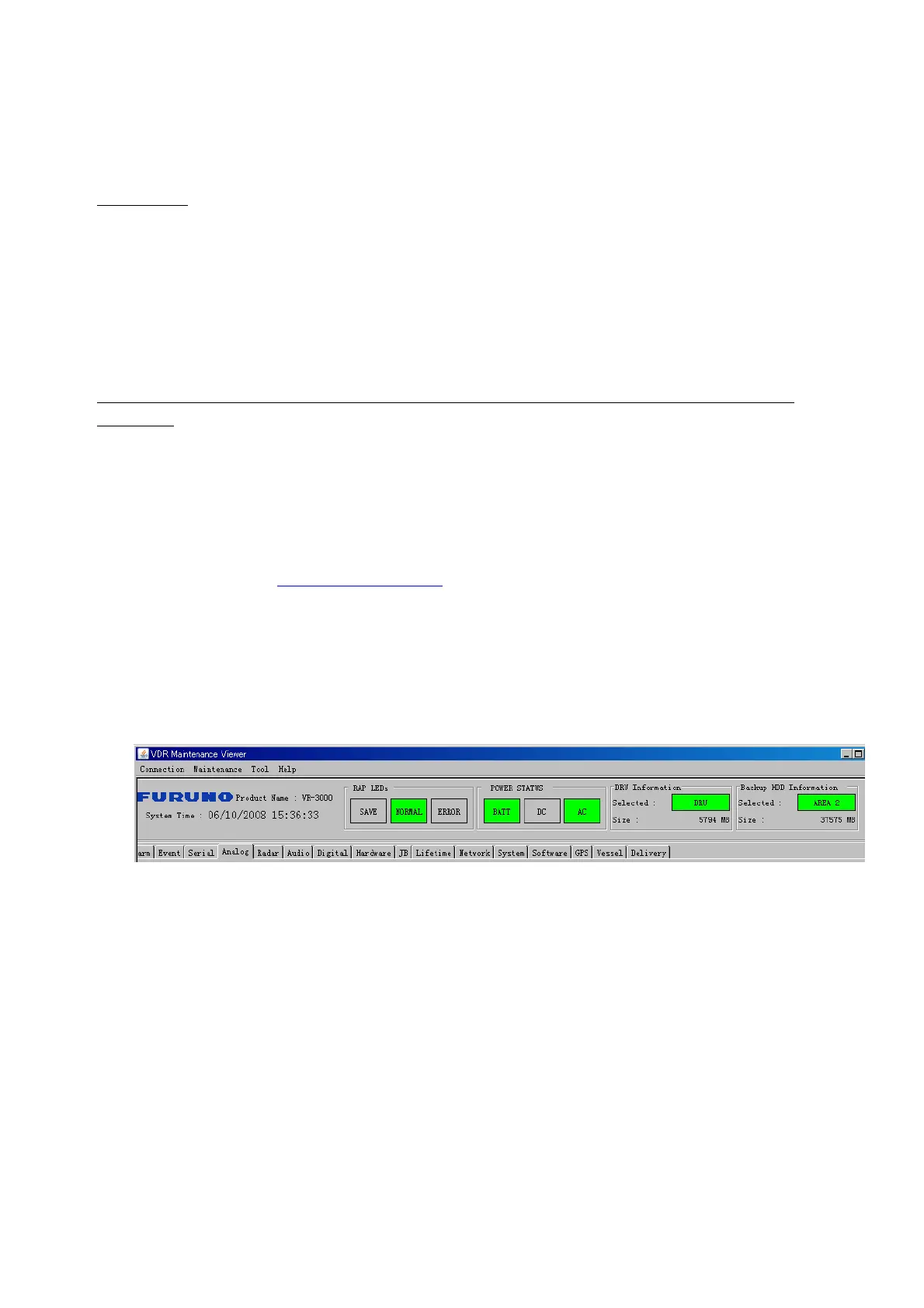

If the connection is successful the information shown below appears in the status
window.
- System Time - RAP LEDs - POWER STATUS
- DRU Information - Backup HDD Information
If an error message appears, the IP address or password may be wrong, or the cable
between the PC and VDR is not correctly connected.
7. Check the memory size of the DRU and Backup HDD that appear in the status
window.
If the memory size display shows "****MB" (data read error) restart the VDR. If the
display still does not change, check that the DRU and HDD are correctly connected.
